Magnesium in PDB 8qw8: In Condensate Rnapii Elongation Complex Bound to RECQ5

All present enzymatic activity of In Condensate Rnapii Elongation Complex Bound to RECQ5:
3.6.4.12;

The structure of In Condensate Rnapii Elongation Complex Bound to RECQ5 also contains other interesting chemical elements:

Zinc

(Zn)

7 atoms

The binding sites of Magnesium atom in the In Condensate Rnapii Elongation Complex Bound to RECQ5 (pdb code 8qw8). This binding sites where shown within 5.0 Angstroms radius around Magnesium atom.
In total only one binding site of Magnesium was determined in the In Condensate Rnapii Elongation Complex Bound to RECQ5, PDB code: 8qw8:

Magnesium binding site 1 out of 1 in the In Condensate Rnapii Elongation Complex Bound to RECQ5

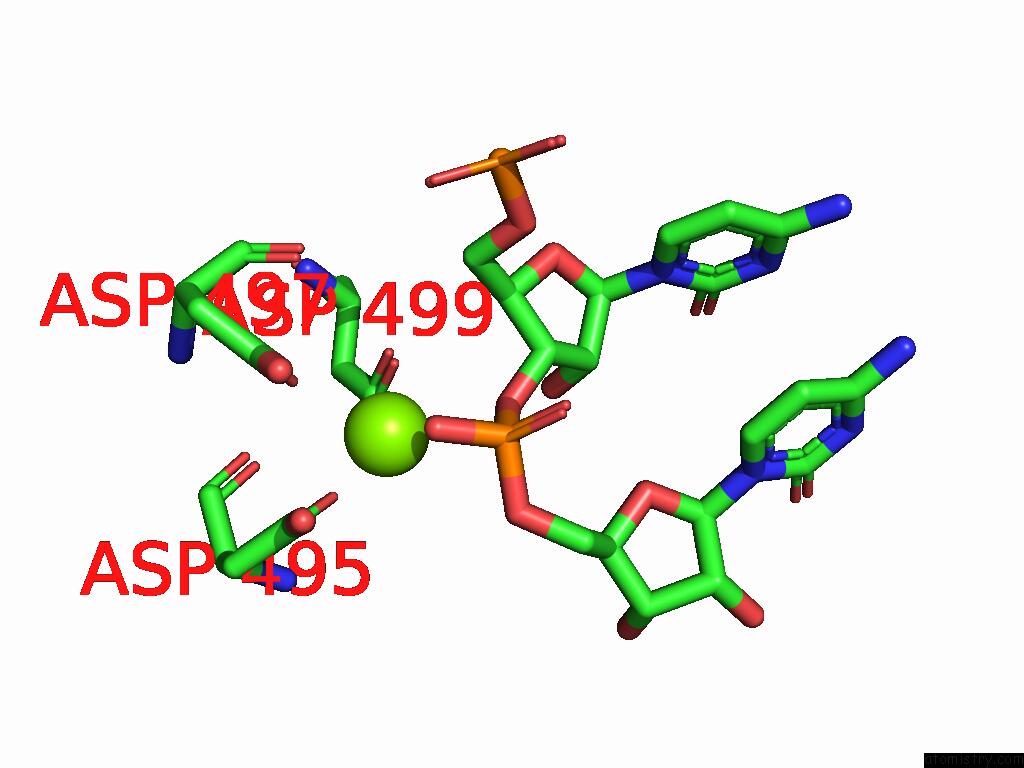

Mono view

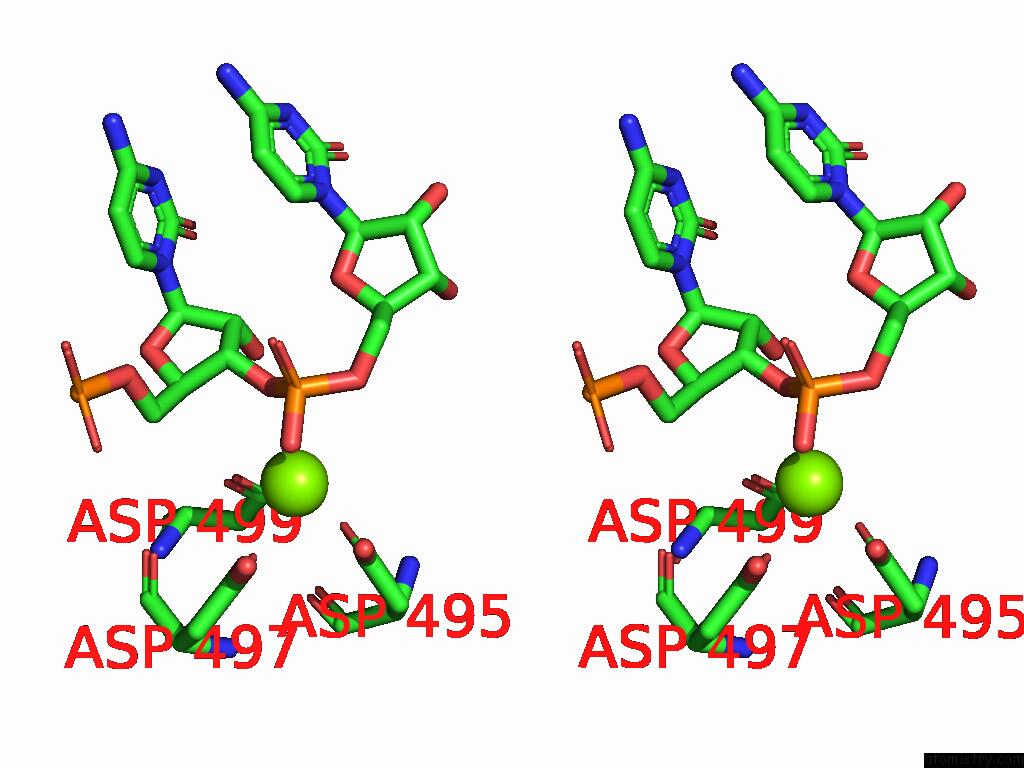

Stereo pair view

A full contact list of Magnesium with other atoms in the Mg binding site number 1 of In Condensate Rnapii Elongation Complex Bound to RECQ5 within 5.0Å range: probe atom residue distance (Å) B Occ P:Mg101 b:35.6 occ:1.00 OP1 P:C17 1.7 78.6 1.0 OD1 A:ASP495 2.0 34.0 1.0 OD1 A:ASP497 2.3 32.2 1.0 P P:C17 2.6 76.9 1.0 O3' P:C16 2.7 26.6 1.0 CG A:ASP495 2.7 34.0 1.0 OD2 A:ASP495 2.8 34.0 1.0 OD1 A:ASP499 3.0 35.2 1.0 O5' P:C17 3.2 78.8 1.0 CG A:ASP497 3.2 32.2 1.0 OD2 A:ASP499 3.4 35.2 1.0 OD2 A:ASP497 3.4 32.2 1.0 CG A:ASP499 3.5 35.2 1.0 C3' P:C16 3.8 26.6 1.0 OP2 P:C17 4.0 75.2 1.0 C4' P:C16 4.1 26.6 1.0 C5' P:C16 4.1 26.6 1.0 CB A:ASP495 4.1 34.0 1.0 O A:ASP495 4.1 34.0 1.0 O A:ASP497 4.2 32.2 1.0 N A:ASP495 4.6 34.0 1.0 C A:ASP495 4.6 34.0 1.0 C5' P:C17 4.6 77.9 1.0 CB A:ASP497 4.7 32.2 1.0 CA A:ASP495 4.7 34.0 1.0 N A:ASP497 4.8 32.2 1.0 O2' P:C16 4.9 26.6 1.0 C A:ASP497 4.9 32.2 1.0 CB A:ASP499 4.9 35.2 1.0 C2' P:C16 5.0 26.6 1.0

M.Sebesta, K.Skubnik, R.Stefl. Spatial Organization of Rna Polymerase II-RECQ5 Transcriptional Condensate To Be Published.
