Magnesium in PDB 9bpm: Cryo-Em Structure of Cardiac Muscle Alpha-Actin A331P Hcm Mutant

The binding sites of Magnesium atom in the Cryo-Em Structure of Cardiac Muscle Alpha-Actin A331P Hcm Mutant (pdb code 9bpm). This binding sites where shown within 5.0 Angstroms radius around Magnesium atom.
In total 4 binding sites of Magnesium where determined in the Cryo-Em Structure of Cardiac Muscle Alpha-Actin A331P Hcm Mutant, PDB code: 9bpm:
Jump to Magnesium binding site number: 1; 2; 3; 4;

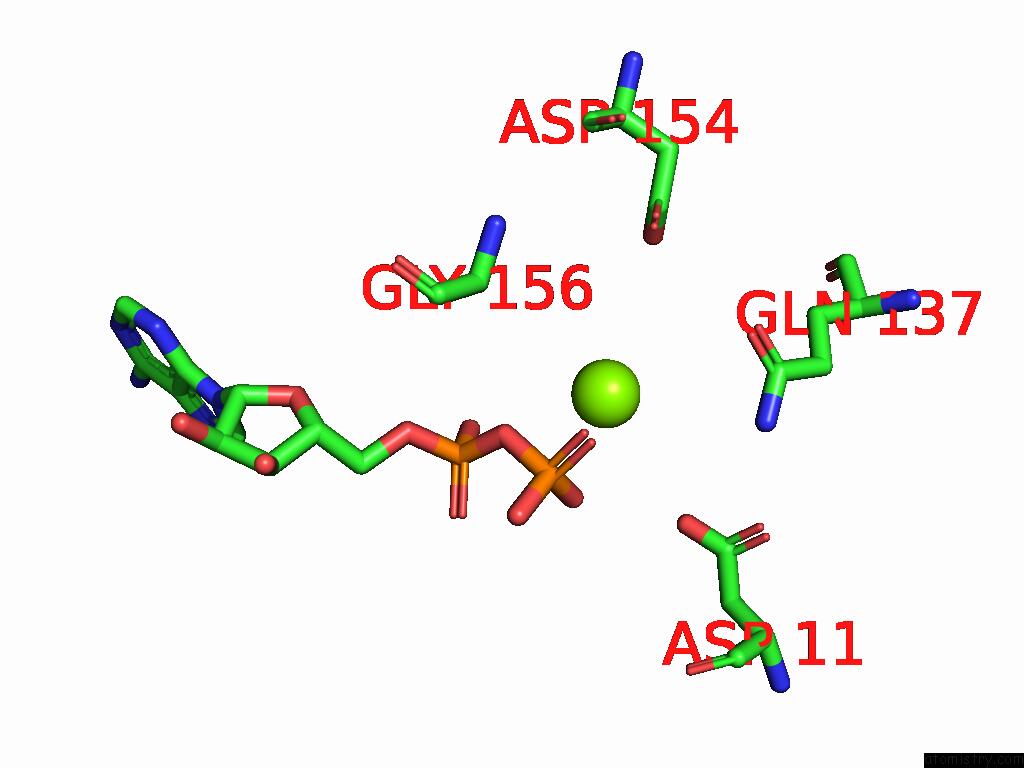

Magnesium binding site 1 out of 4 in the Cryo-Em Structure of Cardiac Muscle Alpha-Actin A331P Hcm Mutant


Mono view

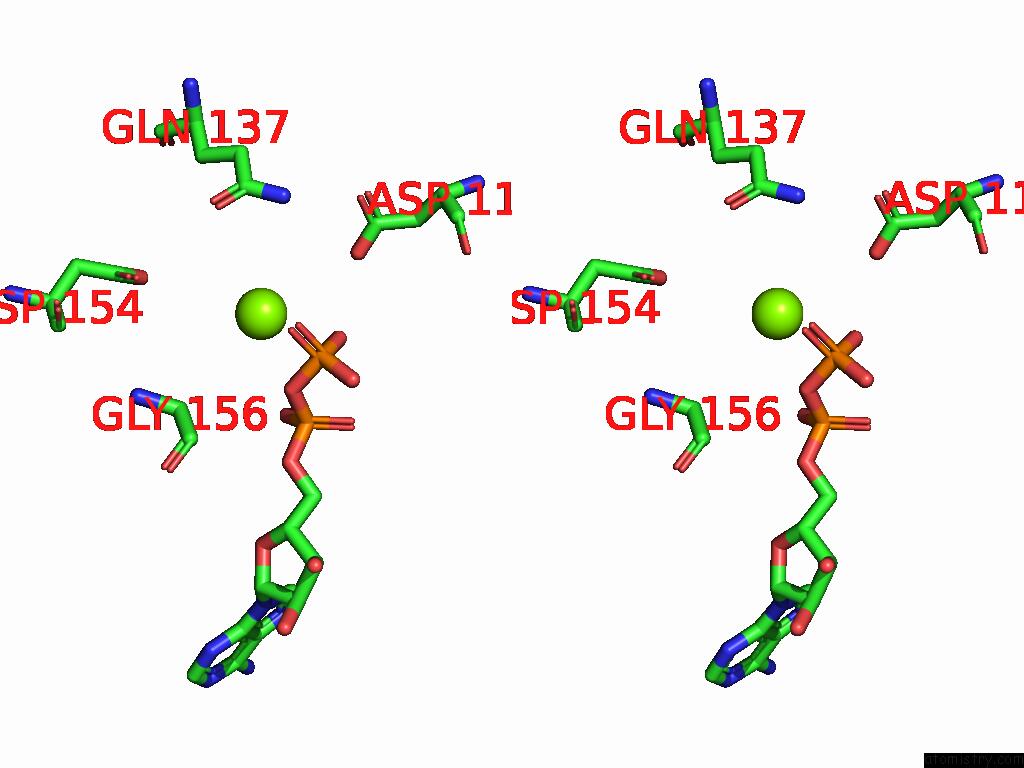

Stereo pair view

A full contact list of Magnesium with other atoms in the Mg binding site number 1 of Cryo-Em Structure of Cardiac Muscle Alpha-Actin A331P Hcm Mutant within 5.0Å range: probe atom residue distance (Å) B Occ A:Mg402 b:76.0 occ:1.00 O3B A:ADP401 2.6 79.5 1.0 O2B A:ADP401 2.8 83.7 1.0 PB A:ADP401 2.9 81.5 1.0 O3A A:ADP401 2.9 66.9 1.0 O2A A:ADP401 3.9 74.8 1.0 PA A:ADP401 4.0 71.0 1.0 NE2 A:GLN137 4.3 71.2 1.0 OE1 A:GLN137 4.3 71.7 1.0 O1B A:ADP401 4.4 63.2 1.0 CD A:GLN137 4.5 70.0 1.0 OD2 A:ASP11 4.6 79.7 1.0 OD1 A:ASP154 4.6 70.5 1.0 OD2 A:ASP154 4.8 73.5 1.0 CA A:GLY156 4.8 72.1 1.0 O1A A:ADP401 4.9 73.5 1.0

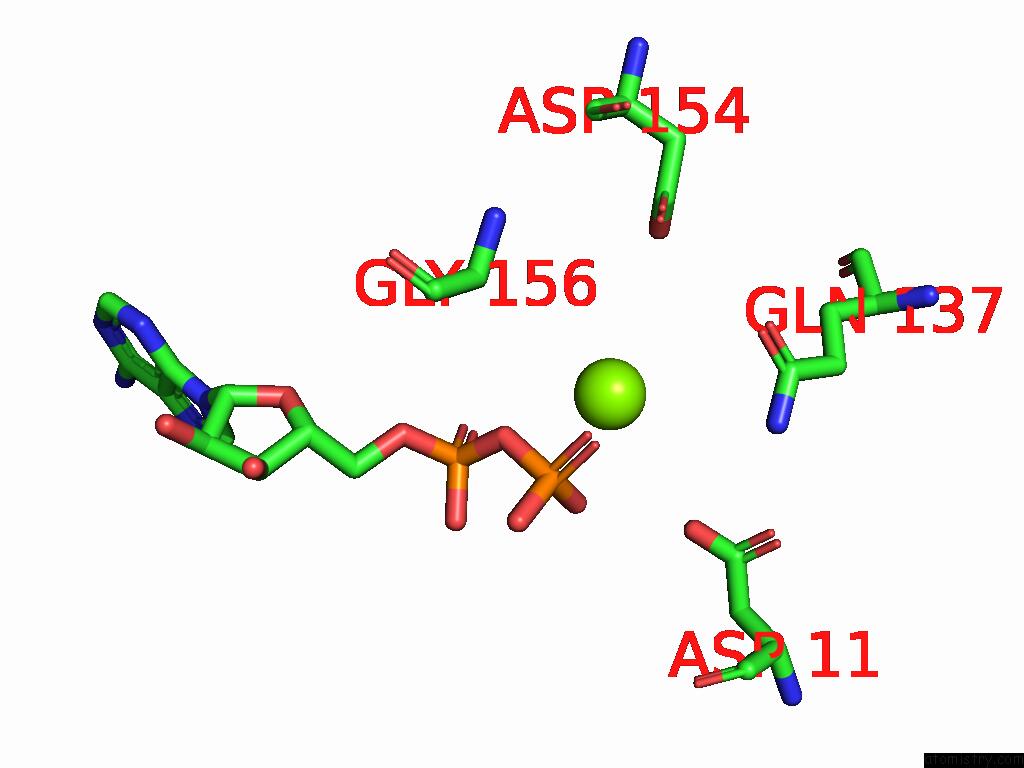

Magnesium binding site 2 out of 4 in the Cryo-Em Structure of Cardiac Muscle Alpha-Actin A331P Hcm Mutant


Mono view


Stereo pair view

A full contact list of Magnesium with other atoms in the Mg binding site number 2 of Cryo-Em Structure of Cardiac Muscle Alpha-Actin A331P Hcm Mutant within 5.0Å range: probe atom residue distance (Å) B Occ B:Mg402 b:76.0 occ:1.00 O3B B:ADP401 2.6 79.5 1.0 O2B B:ADP401 2.8 83.7 1.0 PB B:ADP401 2.9 81.5 1.0 O3A B:ADP401 2.9 66.9 1.0 O2A B:ADP401 3.9 74.8 1.0 PA B:ADP401 4.0 71.0 1.0 NE2 B:GLN137 4.3 71.2 1.0 OE1 B:GLN137 4.3 71.7 1.0 O1B B:ADP401 4.4 63.2 1.0 CD B:GLN137 4.5 70.0 1.0 OD2 B:ASP11 4.6 79.7 1.0 OD1 B:ASP154 4.6 70.5 1.0 OD2 B:ASP154 4.8 73.5 1.0 CA B:GLY156 4.8 72.1 1.0 O1A B:ADP401 4.9 73.5 1.0

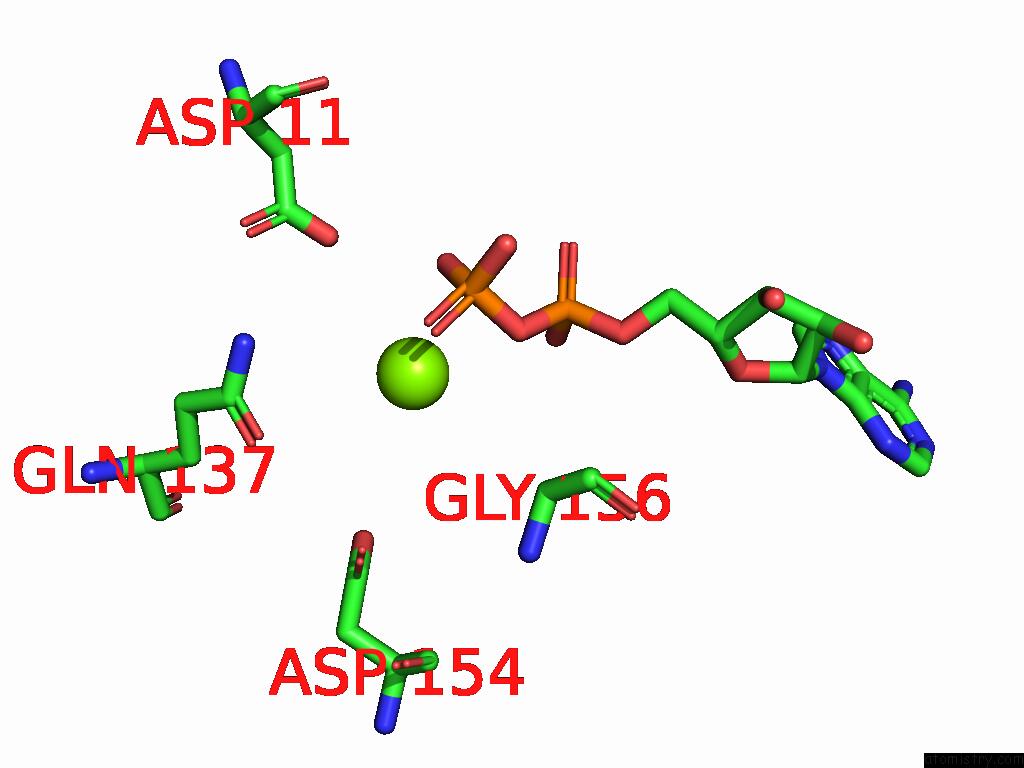

Magnesium binding site 3 out of 4 in the Cryo-Em Structure of Cardiac Muscle Alpha-Actin A331P Hcm Mutant


Mono view


Stereo pair view

A full contact list of Magnesium with other atoms in the Mg binding site number 3 of Cryo-Em Structure of Cardiac Muscle Alpha-Actin A331P Hcm Mutant within 5.0Å range: probe atom residue distance (Å) B Occ C:Mg402 b:76.0 occ:1.00 O3B C:ADP401 2.6 79.5 1.0 O2B C:ADP401 2.8 83.7 1.0 PB C:ADP401 2.9 81.5 1.0 O3A C:ADP401 2.9 66.9 1.0 O2A C:ADP401 3.9 74.8 1.0 PA C:ADP401 4.0 71.0 1.0 NE2 C:GLN137 4.3 71.2 1.0 OE1 C:GLN137 4.3 71.7 1.0 O1B C:ADP401 4.4 63.2 1.0 CD C:GLN137 4.5 70.0 1.0 OD2 C:ASP11 4.6 79.7 1.0 OD1 C:ASP154 4.6 70.5 1.0 OD2 C:ASP154 4.8 73.5 1.0 CA C:GLY156 4.8 72.1 1.0 O1A C:ADP401 4.9 73.5 1.0

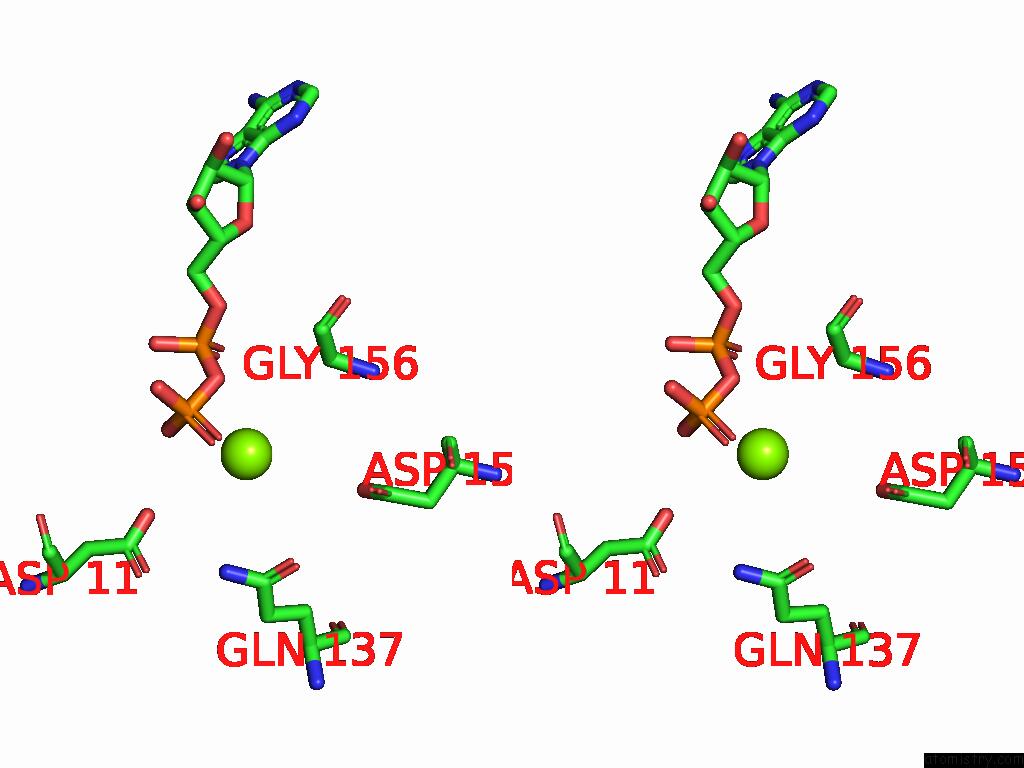

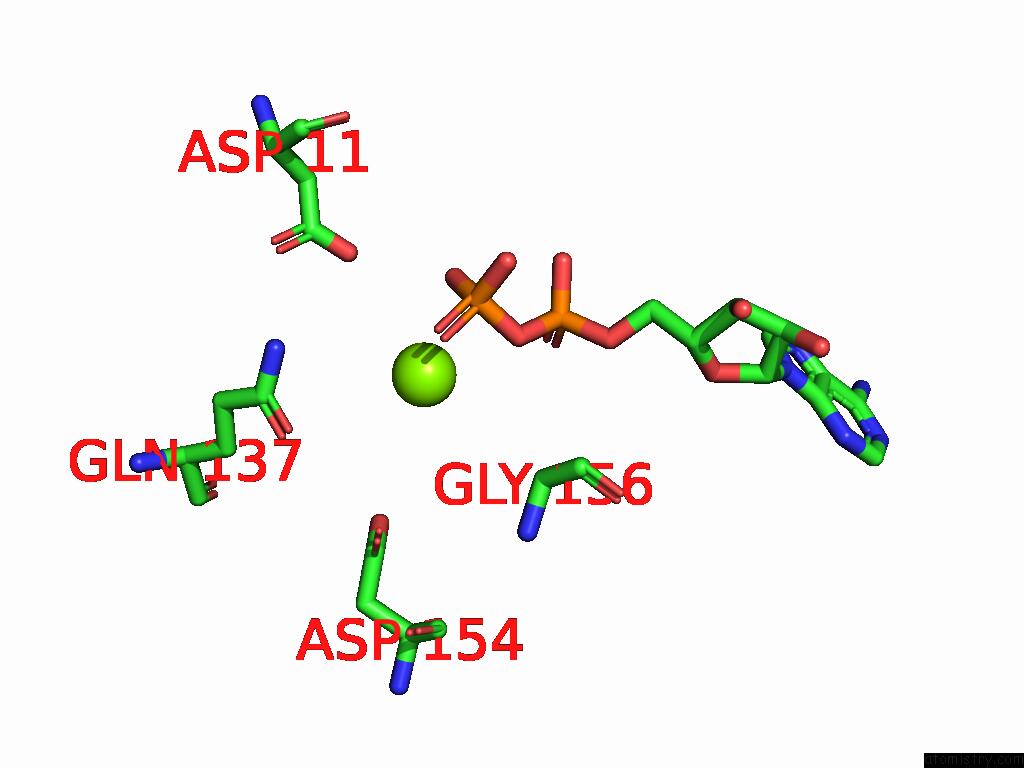

Magnesium binding site 4 out of 4 in the Cryo-Em Structure of Cardiac Muscle Alpha-Actin A331P Hcm Mutant


Mono view


Stereo pair view

A full contact list of Magnesium with other atoms in the Mg binding site number 4 of Cryo-Em Structure of Cardiac Muscle Alpha-Actin A331P Hcm Mutant within 5.0Å range: probe atom residue distance (Å) B Occ D:Mg402 b:76.0 occ:1.00 O3B D:ADP401 2.6 79.5 1.0 O2B D:ADP401 2.8 83.7 1.0 PB D:ADP401 2.9 81.5 1.0 O3A D:ADP401 2.9 66.9 1.0 O2A D:ADP401 3.9 74.8 1.0 PA D:ADP401 4.0 71.0 1.0 NE2 D:GLN137 4.3 71.2 1.0 OE1 D:GLN137 4.3 71.7 1.0 O1B D:ADP401 4.4 63.2 1.0 CD D:GLN137 4.5 70.0 1.0 OD2 D:ASP11 4.6 79.7 1.0 OD1 D:ASP154 4.6 70.5 1.0 OD2 D:ASP154 4.8 73.5 1.0 CA D:GLY156 4.8 72.1 1.0 O1A D:ADP401 4.9 73.5 1.0

H.L.Huang, S.M.Heissler, K.Chinthalapudi. Cryo-Em Structure of Cardiac Muscle Alpha-Actin A331P Hcm Mutant To Be Published.
