Magnesium in PDB 9d2i: Cryo-Em Structure of the Strand Displacement Complex (III) of Yeast Mitochondrial Dna Polymerase Gamma (MIP1) with Downstream Dna

Enzymatic activity of Cryo-Em Structure of the Strand Displacement Complex (III) of Yeast Mitochondrial Dna Polymerase Gamma (MIP1) with Downstream Dna

Magnesium Binding Sites:

Magnesium binding site 1 out of 1 in 9d2i

Magnesium Binding Sites List in 9d2i

Magnesium binding site 1 out of 1 in the Cryo-Em Structure of the Strand Displacement Complex (III) of Yeast Mitochondrial Dna Polymerase Gamma (MIP1) with Downstream Dna

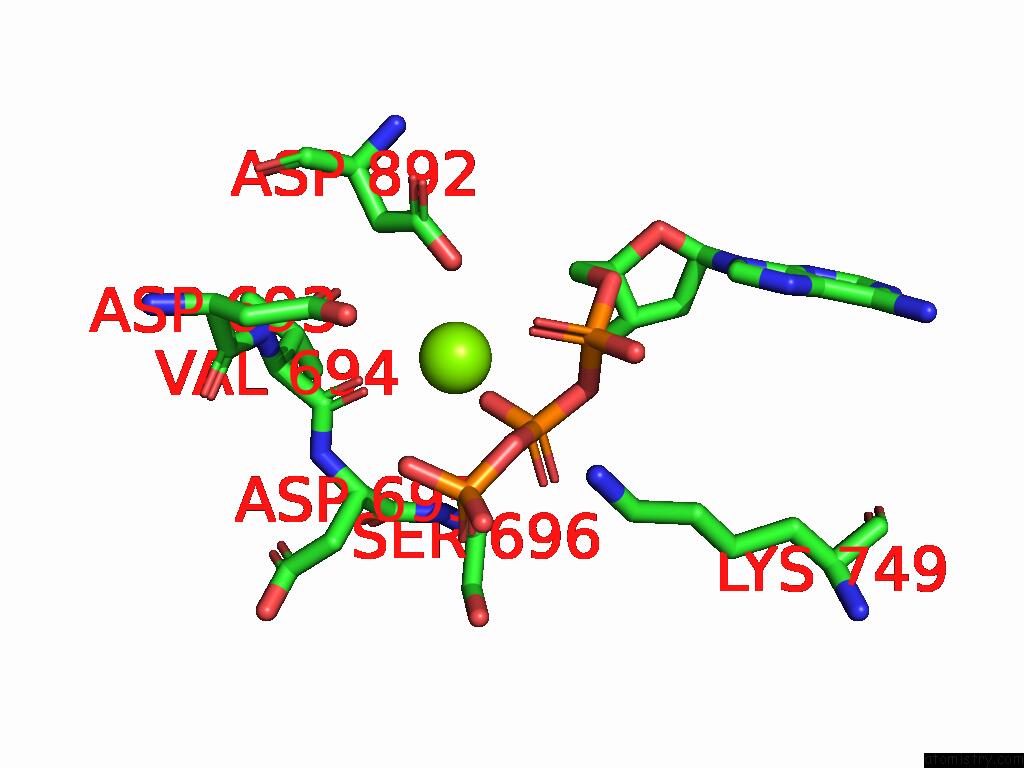

Mono view

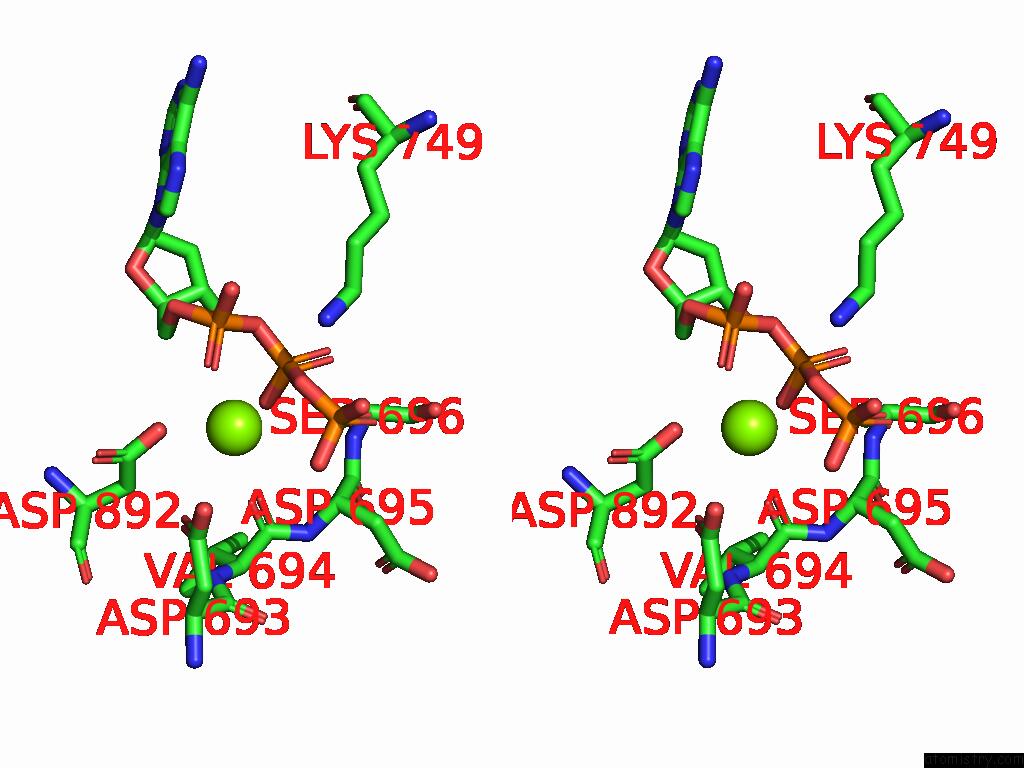

Stereo pair view

A full contact list of Magnesium with other atoms in the Mg binding site number 1 of Cryo-Em Structure of the Strand Displacement Complex (III) of Yeast Mitochondrial Dna Polymerase Gamma (MIP1) with Downstream Dna within 5.0Å range: probe atom residue distance (Å) B Occ A:Mg1302 b:30.0 occ:1.00 O1B A:DTP1301 2.1 20.0 1.0 O1A A:DTP1301 2.3 20.0 1.0 OD2 A:ASP892 2.5 84.4 1.0 O3B A:DTP1301 2.6 20.0 1.0 O A:VAL694 2.7 89.7 1.0 PB A:DTP1301 2.7 20.0 1.0 O2G A:DTP1301 3.1 20.0 1.0 PA A:DTP1301 3.4 20.0 1.0 O3A A:DTP1301 3.4 20.0 1.0 PG A:DTP1301 3.4 20.0 1.0 OD1 A:ASP693 3.5 92.5 1.0 CG A:ASP892 3.5 84.4 1.0 C A:VAL694 3.9 89.7 1.0 OD2 A:ASP693 4.0 92.5 1.0 C5' A:DTP1301 4.1 20.0 1.0 CG A:ASP693 4.1 92.5 1.0 O2B A:DTP1301 4.1 20.0 1.0 CB A:ASP892 4.3 84.4 1.0 O5' A:DTP1301 4.3 20.0 1.0 O3G A:DTP1301 4.3 20.0 1.0 OD1 A:ASP892 4.4 84.4 1.0 CA A:ASP695 4.5 80.6 1.0 O2A A:DTP1301 4.6 20.0 1.0 O1G A:DTP1301 4.6 20.0 1.0 N A:ASP695 4.7 80.6 1.0 N A:SER696 4.9 81.8 1.0 N A:VAL694 4.9 89.7 1.0 NZ A:LYS749 4.9 80.0 1.0 CA A:VAL694 4.9 89.7 1.0

Reference:
