Magnesium in PDB 9ei4: Cryo-Em Structure of Human Rna Polymerase II Elongation Complex Bound to the RECQL5 Helicase in the Presence of Adp

Enzymatic activity of Cryo-Em Structure of Human Rna Polymerase II Elongation Complex Bound to the RECQL5 Helicase in the Presence of Adp

Other elements in 9ei4:

Magnesium Binding Sites:

Magnesium binding site 1 out of 1 in 9ei4

Magnesium Binding Sites List in 9ei4

Magnesium binding site 1 out of 1 in the Cryo-Em Structure of Human Rna Polymerase II Elongation Complex Bound to the RECQL5 Helicase in the Presence of Adp

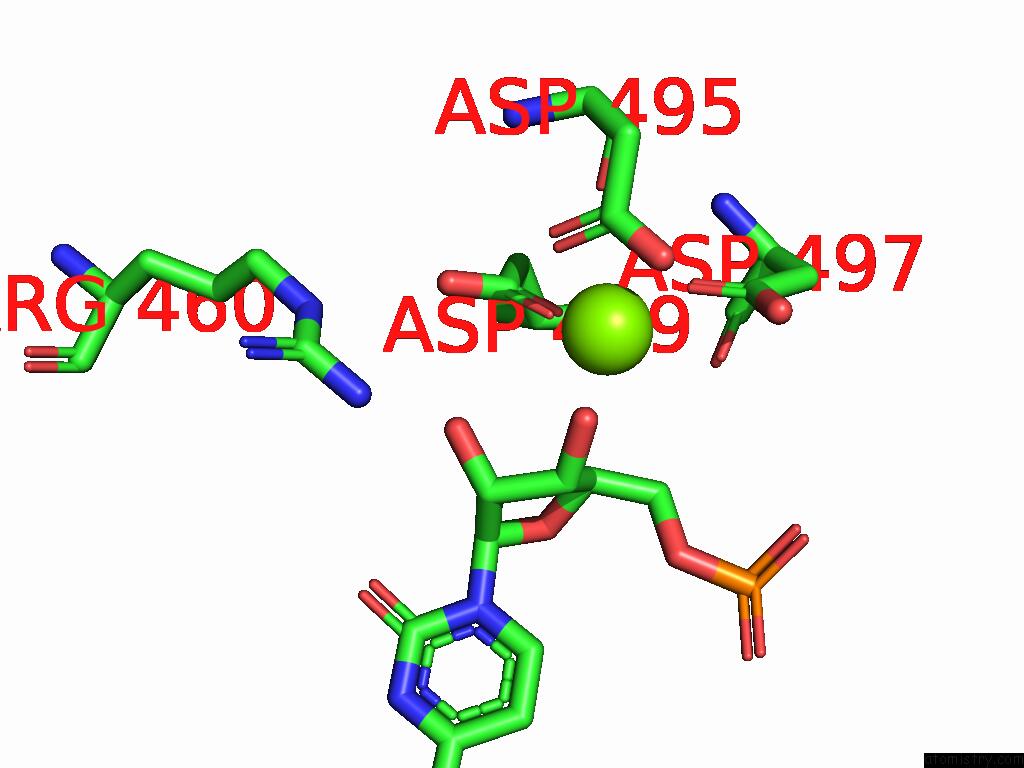

Mono view

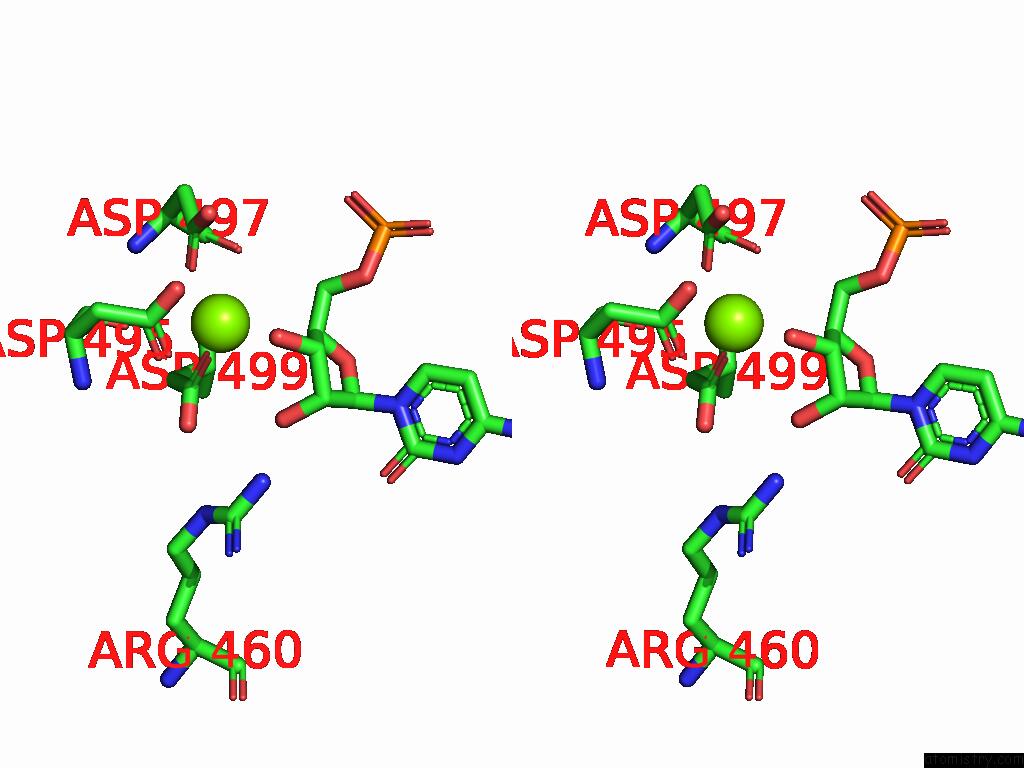

Stereo pair view

A full contact list of Magnesium with other atoms in the Mg binding site number 1 of Cryo-Em Structure of Human Rna Polymerase II Elongation Complex Bound to the RECQL5 Helicase in the Presence of Adp within 5.0Å range: probe atom residue distance (Å) B Occ A:Mg2003 b:24.9 occ:1.00 O3' P:C20 1.9 24.5 1.0 OD1 A:ASP495 2.0 26.8 1.0 OD2 A:ASP495 2.0 26.8 1.0 CG A:ASP495 2.2 26.8 1.0 OD1 A:ASP497 2.5 25.5 1.0 OD1 A:ASP499 2.5 25.6 1.0 CG A:ASP497 3.2 25.5 1.0 C3' P:C20 3.3 24.5 1.0 OD2 A:ASP497 3.3 25.5 1.0 CG A:ASP499 3.6 25.6 1.0 O A:ASP495 3.6 26.8 1.0 CB A:ASP495 3.7 26.8 1.0 O2' P:C20 3.9 24.5 1.0 OD2 A:ASP499 4.0 25.6 1.0 C4' P:C20 4.0 24.5 1.0 C2' P:C20 4.1 24.5 1.0 C A:ASP495 4.3 26.8 1.0 CA A:ASP495 4.4 26.8 1.0 O A:ASP497 4.4 25.5 1.0 N A:ASP495 4.5 26.8 1.0 C5' P:C20 4.5 24.5 1.0 CB A:ASP497 4.7 25.5 1.0 CB A:ASP499 4.8 25.6 1.0 N A:ASP497 4.9 25.5 1.0 NH2 A:ARG460 4.9 26.5 1.0

Reference:
