Magnesium in PDB 9h7y: SMSC2B2 Complex From M. Jannaschii (Orthorhombic Form)

The structure of SMSC2B2 Complex From M. Jannaschii (Orthorhombic Form), PDB code: 9h7y was solved by A.E.Mechaly, M.Dussouchaud, A.Haouz, J.M.Betton, F.Barras, with X-Ray Crystallography technique. A brief refinement statistics is given in the table below:

Resolution Low / High (Å)	70.39 / 3.20
Space group	C 2 2 21
Cell size a, b, c (Å), α, β, γ (°)	85.167, 125.038, 133.056, 90, 90, 90
R / Rfree (%)	27.2 / 29

The binding sites of Magnesium atom in the SMSC2B2 Complex From M. Jannaschii (Orthorhombic Form) (pdb code 9h7y). This binding sites where shown within 5.0 Angstroms radius around Magnesium atom.
In total only one binding site of Magnesium was determined in the SMSC2B2 Complex From M. Jannaschii (Orthorhombic Form), PDB code: 9h7y:

Magnesium binding site 1 out of 1 in the SMSC2B2 Complex From M. Jannaschii (Orthorhombic Form)

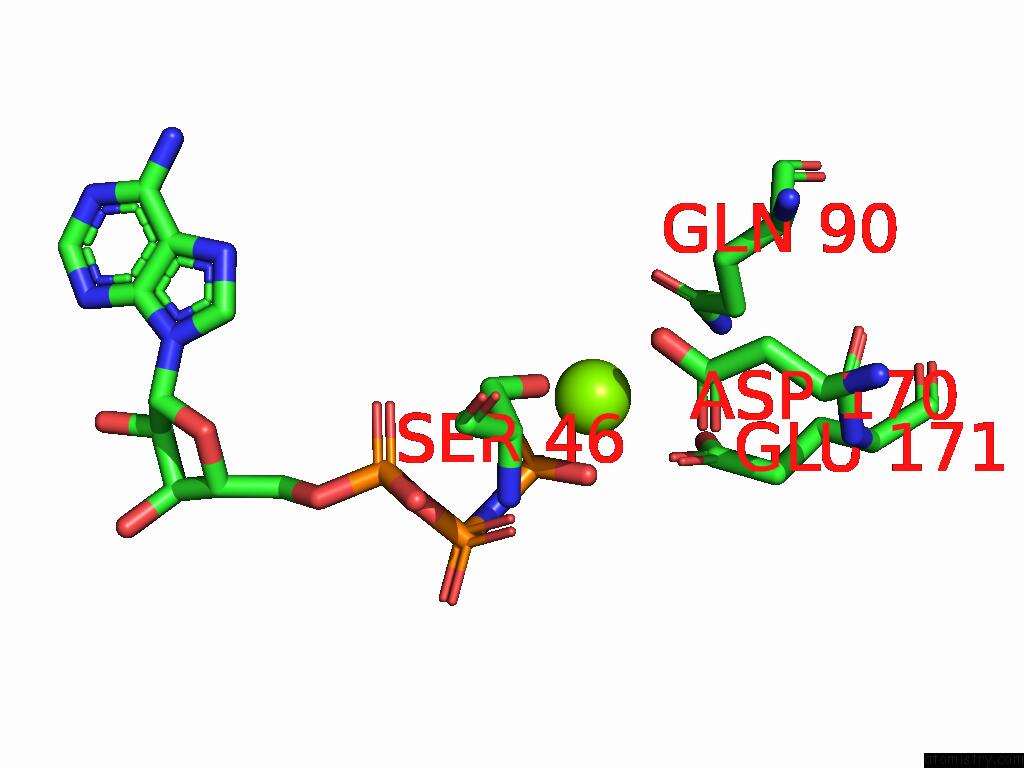

Mono view

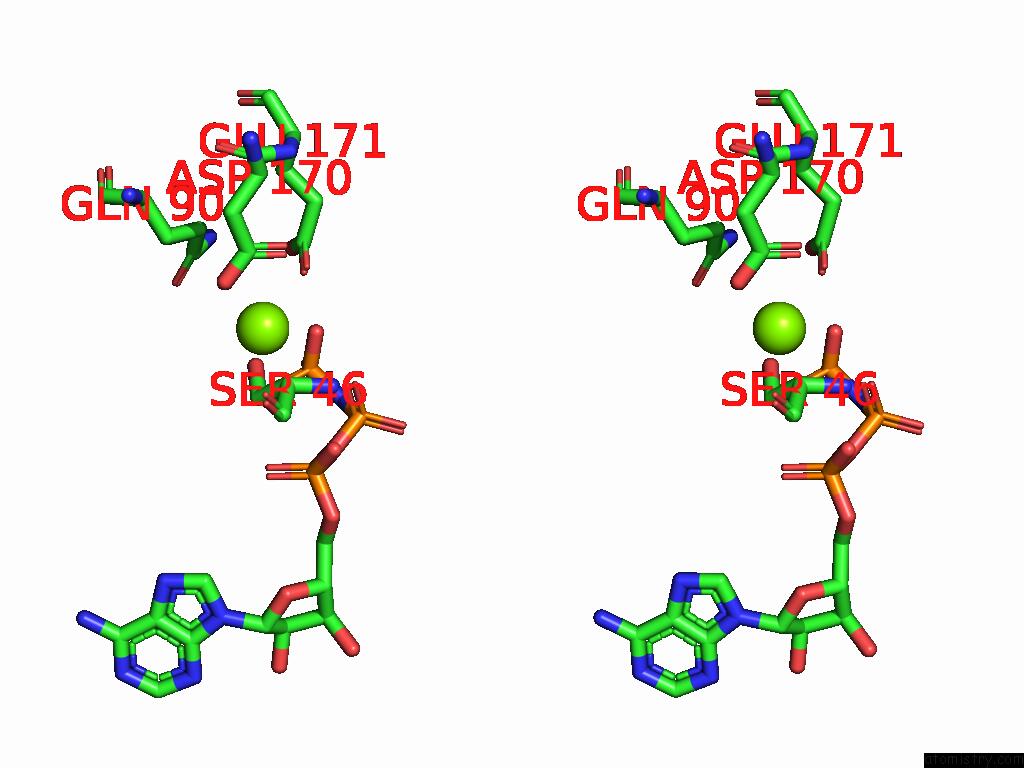

Stereo pair view

A full contact list of Magnesium with other atoms in the Mg binding site number 1 of SMSC2B2 Complex From M. Jannaschii (Orthorhombic Form) within 5.0Å range: probe atom residue distance (Å) B Occ A:Mg301 b:37.9 occ:1.00 OG A:SER46 1.9 139.7 1.0 O1G A:ANP302 2.6 153.8 1.0 OE1 A:GLU171 2.7 160.6 1.0 O2G A:ANP302 2.9 153.8 1.0 OD2 A:ASP170 3.1 150.3 1.0 OD1 A:ASP170 3.3 149.2 1.0 CB A:SER46 3.3 137.9 1.0 PG A:ANP302 3.4 153.8 1.0 O2B A:ANP302 3.5 154.9 1.0 CG A:ASP170 3.5 148.5 1.0 CD A:GLU171 3.8 159.8 1.0 CA A:SER46 4.1 137.1 1.0 CG A:GLN90 4.2 126.2 1.0 N A:SER46 4.2 137.9 1.0 OE2 A:GLU171 4.3 161.6 1.0 OE1 A:GLN90 4.3 129.3 1.0 N3B A:ANP302 4.3 154.3 1.0 CD A:GLN90 4.4 128.3 1.0 CB A:GLN90 4.4 124.7 1.0 PB A:ANP302 4.5 154.9 1.0 O3G A:ANP302 4.5 153.6 1.0 O3A A:ANP302 4.8 156.0 1.0 O2A A:ANP302 4.9 157.1 1.0 CG A:GLU171 4.9 155.1 1.0

A.E.Mechaly, M.Dussouchaud, A.Haouz, J.M.Betton, F.Barras. SMSC2B2 Complex From M. Jannaschii (Orthorhombic Form) To Be Published.
