Magnesium in PDB 9iin: Structure of CTF18-Pcna with Atp and MG2+

The binding sites of Magnesium atom in the Structure of CTF18-Pcna with Atp and MG2+ (pdb code 9iin). This binding sites where shown within 5.0 Angstroms radius around Magnesium atom.
In total 2 binding sites of Magnesium where determined in the Structure of CTF18-Pcna with Atp and MG2+, PDB code: 9iin:
Jump to Magnesium binding site number: 1; 2;

Magnesium binding site 1 out of 2 in the Structure of CTF18-Pcna with Atp and MG2+

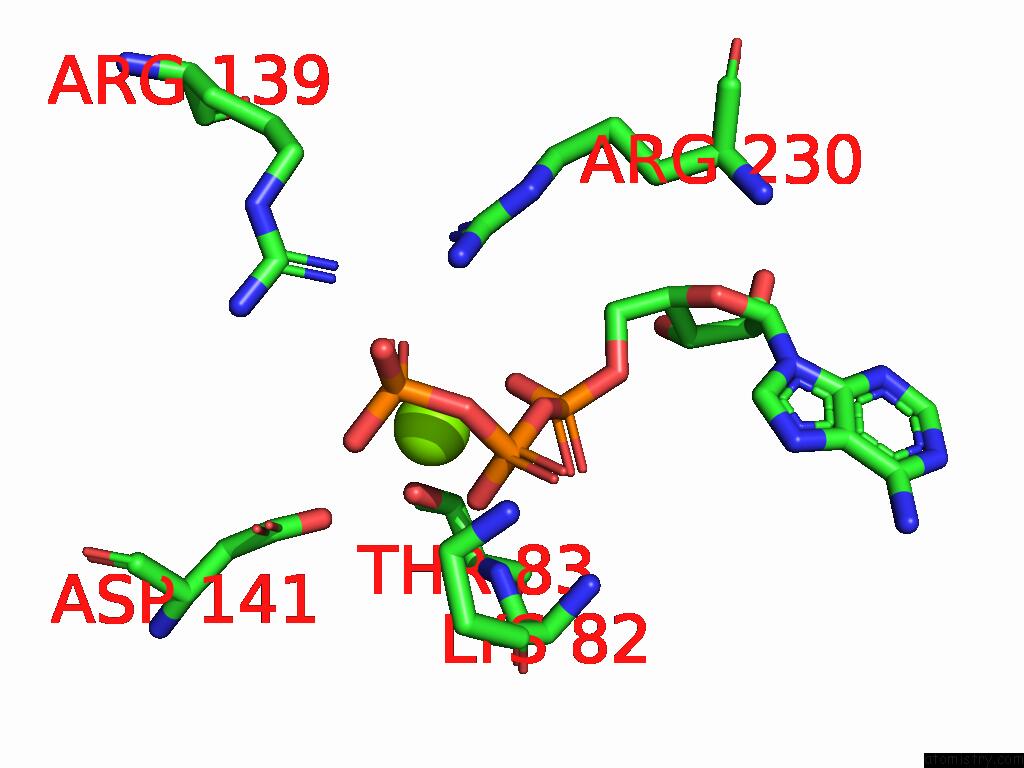

Mono view

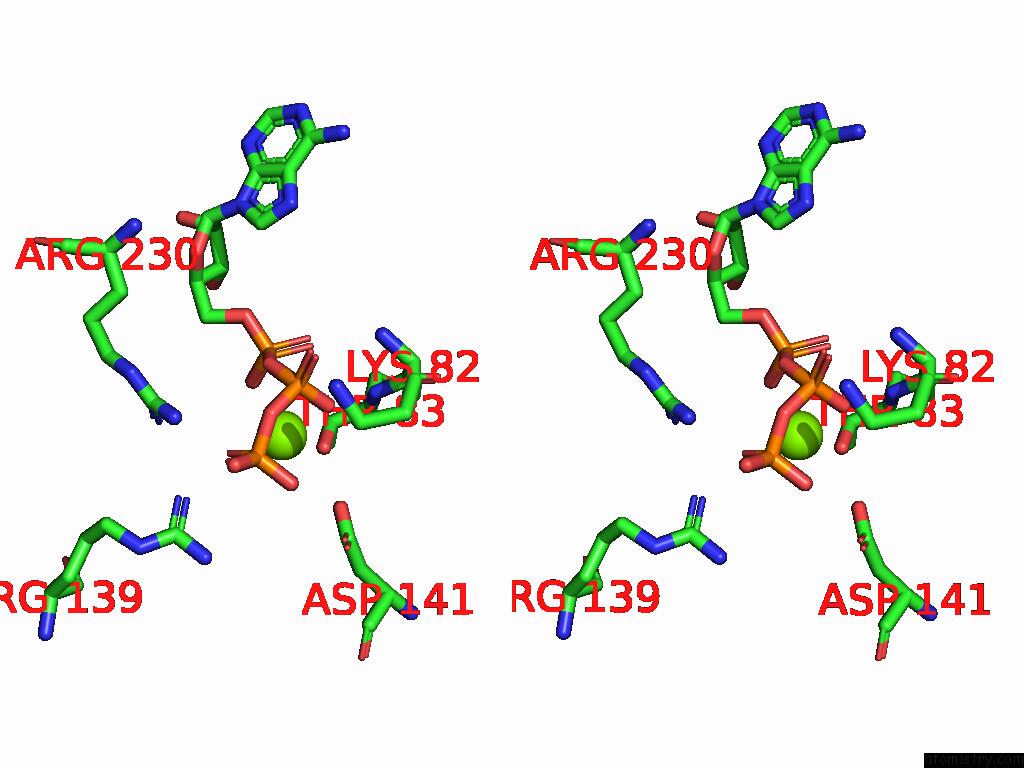

Stereo pair view

A full contact list of Magnesium with other atoms in the Mg binding site number 1 of Structure of CTF18-Pcna with Atp and MG2+ within 5.0Å range: probe atom residue distance (Å) B Occ B:Mg401 b:104.4 occ:1.00 O1B B:ATP402 2.0 111.8 1.0 OG1 B:THR83 2.2 104.5 1.0 O3G B:ATP402 2.2 111.8 1.0 O3B B:ATP402 2.4 111.8 1.0 PB B:ATP402 2.4 111.8 1.0 PG B:ATP402 2.4 111.8 1.0 O1G B:ATP402 2.5 111.8 1.0 O3A B:ATP402 2.6 111.8 1.0 O1A B:ATP402 2.9 111.8 1.0 PA B:ATP402 3.2 111.8 1.0 CB B:THR83 3.2 104.5 1.0 O2A B:ATP402 3.8 111.8 1.0 N B:THR83 3.9 104.5 1.0 O2B B:ATP402 3.9 111.8 1.0 O2G B:ATP402 3.9 111.8 1.0 OD2 B:ASP141 3.9 123.7 1.0 CA B:THR83 4.2 104.5 1.0 NH1 C:ARG139 4.2 109.8 1.0 CG2 B:THR83 4.3 104.5 1.0 NH2 B:ARG230 4.3 108.1 1.0 OD1 B:ASP141 4.5 123.7 1.0 NH1 B:ARG230 4.5 108.1 1.0 O5' B:ATP402 4.6 111.8 1.0 CG B:ASP141 4.6 123.7 1.0 CZ B:ARG230 4.8 108.1 1.0 CE B:LYS82 4.9 106.3 1.0

Magnesium binding site 2 out of 2 in the Structure of CTF18-Pcna with Atp and MG2+

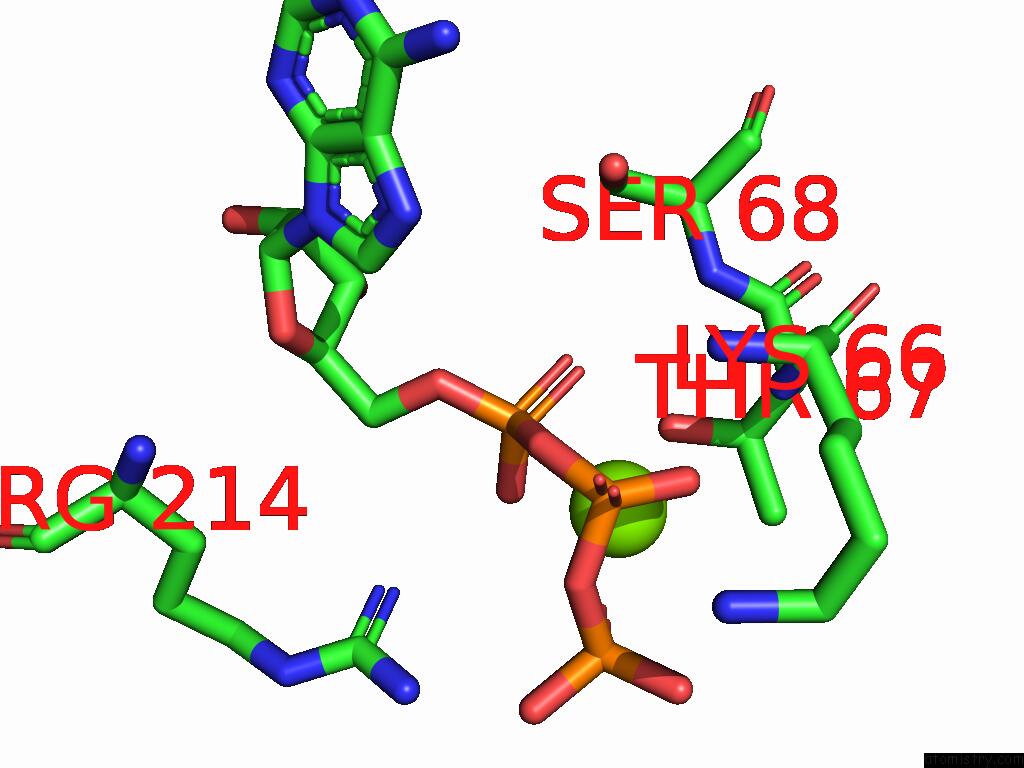

Mono view

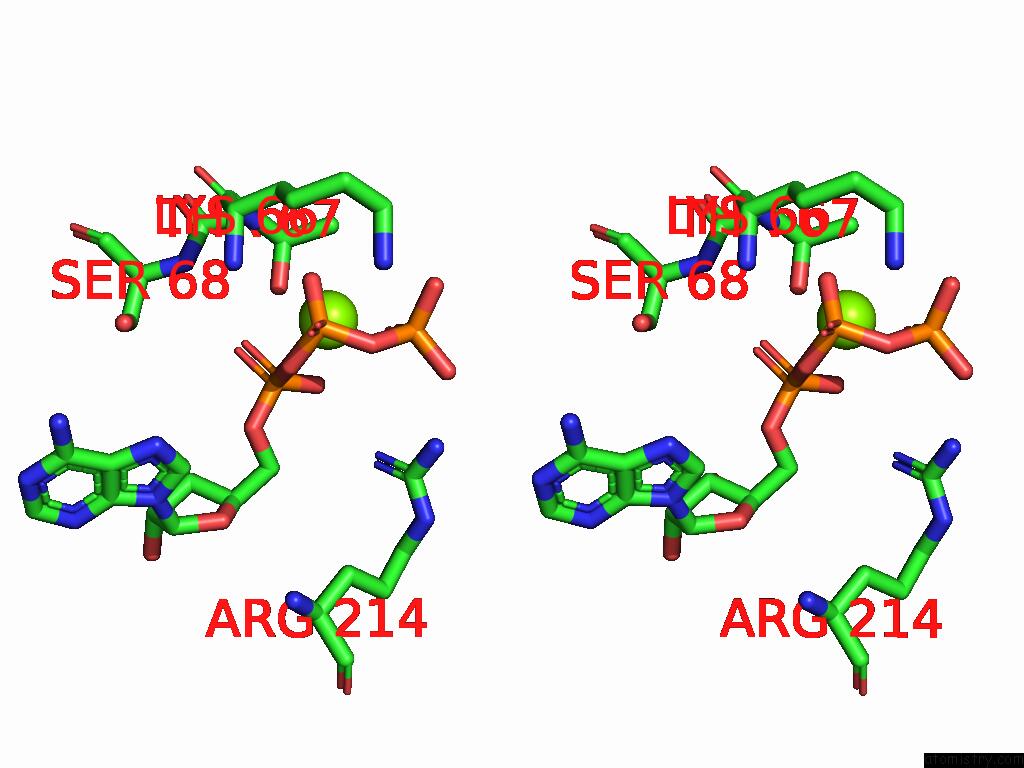

Stereo pair view

A full contact list of Magnesium with other atoms in the Mg binding site number 2 of Structure of CTF18-Pcna with Atp and MG2+ within 5.0Å range: probe atom residue distance (Å) B Occ C:Mg401 b:128.4 occ:1.00 O3G C:ATP402 2.0 128.8 1.0 O1B C:ATP402 2.1 128.8 1.0 O1A C:ATP402 2.1 128.8 1.0 OG1 C:THR67 2.1 114.2 1.0 PB C:ATP402 2.3 128.8 1.0 PA C:ATP402 2.4 128.8 1.0 O3A C:ATP402 2.4 128.8 1.0 O3B C:ATP402 2.5 128.8 1.0 O2A C:ATP402 2.7 128.8 1.0 PG C:ATP402 2.8 128.8 1.0 CG2 C:THR67 3.0 114.2 1.0 CB C:THR67 3.1 114.2 1.0 O1G C:ATP402 3.6 128.8 1.0 N C:THR67 3.7 114.2 1.0 O2B C:ATP402 3.9 128.8 1.0 O5' C:ATP402 3.9 128.8 1.0 O2G C:ATP402 4.0 128.8 1.0 CA C:THR67 4.0 114.2 1.0 NH1 C:ARG214 4.5 120.8 1.0 N C:SER68 4.7 115.8 1.0 N C:LYS66 4.7 113.5 1.0 C5' C:ATP402 4.7 128.8 1.0 C C:THR67 4.8 114.2 1.0 C C:LYS66 4.9 113.5 1.0

G.Briola, M.Tehseen, A.Al-Amodi, P.Q.Nguyen, C.G.Savva, S.M.Hamdan, A.De Biasio. Structure of the Human CTF18 Clamp Loader Bound to Pcna To Be Published.
