Magnesium in PDB 9ire: Crystal Structure of Bacillus Cereus Ferric Uptake Regulator

The structure of Crystal Structure of Bacillus Cereus Ferric Uptake Regulator, PDB code: 9ire was solved by A.G.Gabdulkhakov, T.V.Tishchenko, O.S.Kostareva, with X-Ray Crystallography technique. A brief refinement statistics is given in the table below:

Resolution Low / High (Å)	44.28 / 3.00
Space group	P 4 21 2
Cell size a, b, c (Å), α, β, γ (°)	99.009, 99.009, 61.253, 90, 90, 90
R / Rfree (%)	21.4 / 29.2

The structure of Crystal Structure of Bacillus Cereus Ferric Uptake Regulator also contains other interesting chemical elements:

Zinc

(Zn)

4 atoms

The binding sites of Magnesium atom in the Crystal Structure of Bacillus Cereus Ferric Uptake Regulator (pdb code 9ire). This binding sites where shown within 5.0 Angstroms radius around Magnesium atom.
In total only one binding site of Magnesium was determined in the Crystal Structure of Bacillus Cereus Ferric Uptake Regulator, PDB code: 9ire:

Magnesium binding site 1 out of 1 in the Crystal Structure of Bacillus Cereus Ferric Uptake Regulator

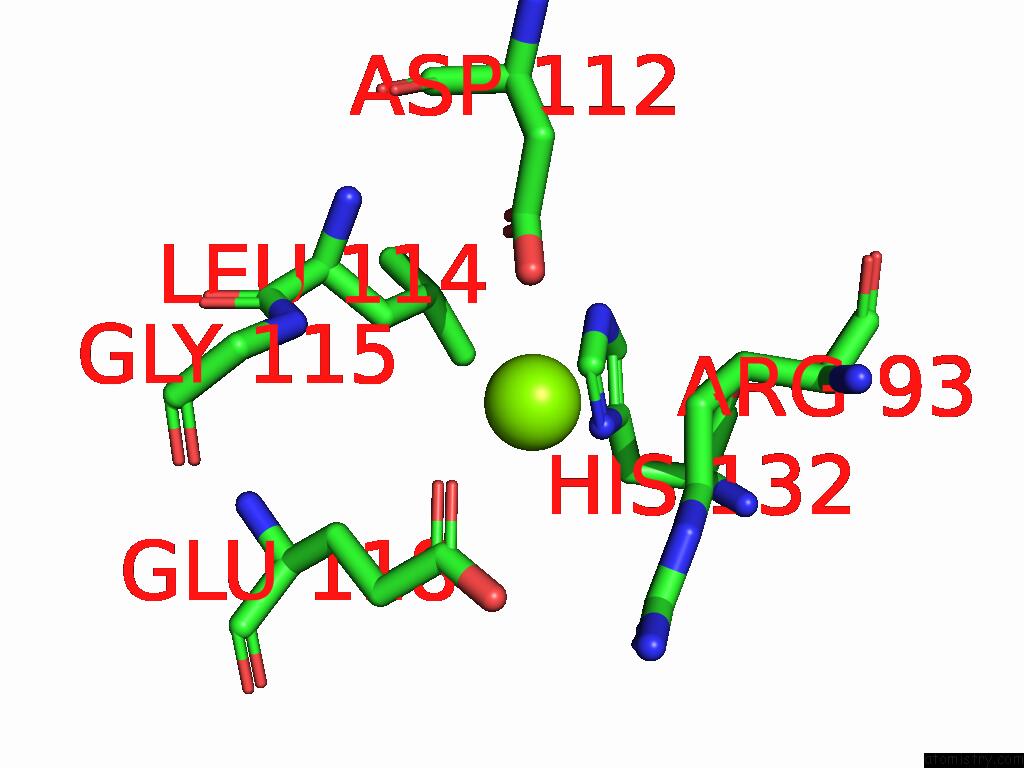

Mono view

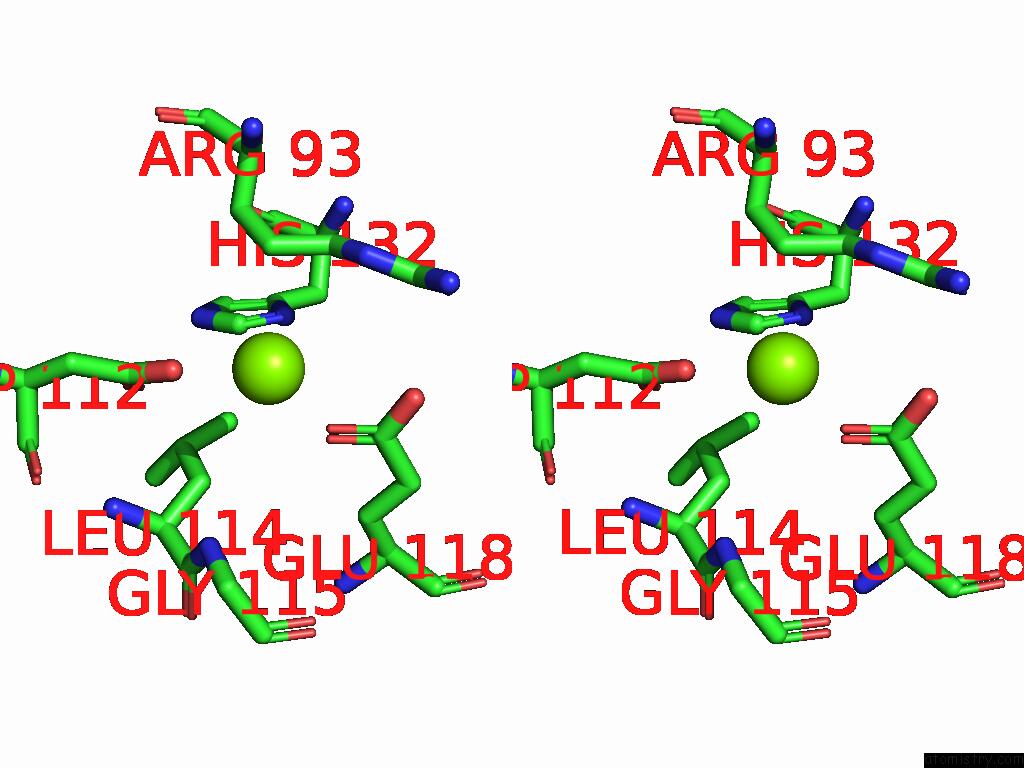

Stereo pair view

A full contact list of Magnesium with other atoms in the Mg binding site number 1 of Crystal Structure of Bacillus Cereus Ferric Uptake Regulator within 5.0Å range: probe atom residue distance (Å) B Occ B:Mg203 b:100.0 occ:1.00 OE1 B:GLU118 2.2 88.8 1.0 CE1 B:HIS132 2.4 92.6 1.0 OD2 B:ASP112 2.6 106.5 1.0 ND1 B:HIS132 2.9 85.3 1.0 CG B:ARG93 3.0 185.6 1.0 CD B:GLU118 3.2 100.0 1.0 CG B:ASP112 3.4 97.9 1.0 CD B:ARG93 3.4 180.2 1.0 OD1 B:ASP112 3.4 78.4 1.0 NE2 B:HIS132 3.6 81.2 1.0 OE2 B:GLU118 3.6 105.7 1.0 NE B:ARG93 3.8 178.7 1.0 CB B:ARG93 4.0 173.8 1.0 CG B:HIS132 4.2 82.4 1.0 CZ B:ARG93 4.4 189.2 1.0 CB B:LEU114 4.5 62.6 1.0 CG B:GLU118 4.5 71.7 1.0 CD2 B:HIS132 4.5 78.5 1.0 CB B:GLU118 4.6 64.9 1.0 N B:GLY115 4.6 79.9 1.0 NH1 B:ARG93 4.6 210.0 1.0 CB B:ASP112 4.8 107.8 1.0

A.G.Gabdulkhakov, T.V.Tishchenko, O.S.Kostareva. Crystal Structure of Bacillus Cereus Ferric Uptake Regulator To Be Published.
