Magnesium in PDB 9m5o: Plasmodium Vivax Aspartyl-Trna Synthetase in Complex with Aspartyl Sulfamoyl Adenosine (Asp-Ams) Complex

Enzymatic activity of Plasmodium Vivax Aspartyl-Trna Synthetase in Complex with Aspartyl Sulfamoyl Adenosine (Asp-Ams) Complex

All present enzymatic activity of Plasmodium Vivax Aspartyl-Trna Synthetase in Complex with Aspartyl Sulfamoyl Adenosine (Asp-Ams) Complex:
6.1.1.12;

Protein crystallography data

The structure of Plasmodium Vivax Aspartyl-Trna Synthetase in Complex with Aspartyl Sulfamoyl Adenosine (Asp-Ams) Complex, PDB code: 9m5o was solved by V.K.Sharma, Y.Manickam, A.Sharma, S.Bagale, P.I.Pradeepkumar, with X-Ray Crystallography technique. A brief refinement statistics is given in the table below:

Resolution Low / High (Å) 50.20 / 1.84
Space group P 61 2 2
Cell size a, b, c (Å), α, β, γ (°) 140.253, 140.253, 267.611, 90, 90, 120
R / Rfree (%) 16.8 / 19.6

Magnesium Binding Sites:

The binding sites of Magnesium atom in the Plasmodium Vivax Aspartyl-Trna Synthetase in Complex with Aspartyl Sulfamoyl Adenosine (Asp-Ams) Complex (pdb code 9m5o). This binding sites where shown within 5.0 Angstroms radius around Magnesium atom.
In total 4 binding sites of Magnesium where determined in the Plasmodium Vivax Aspartyl-Trna Synthetase in Complex with Aspartyl Sulfamoyl Adenosine (Asp-Ams) Complex, PDB code: 9m5o:
Jump to Magnesium binding site number: 1; 2; 3; 4;

Magnesium binding site 1 out of 4 in 9m5o

Go back to Magnesium Binding Sites List in 9m5o
Magnesium binding site 1 out of 4 in the Plasmodium Vivax Aspartyl-Trna Synthetase in Complex with Aspartyl Sulfamoyl Adenosine (Asp-Ams) Complex

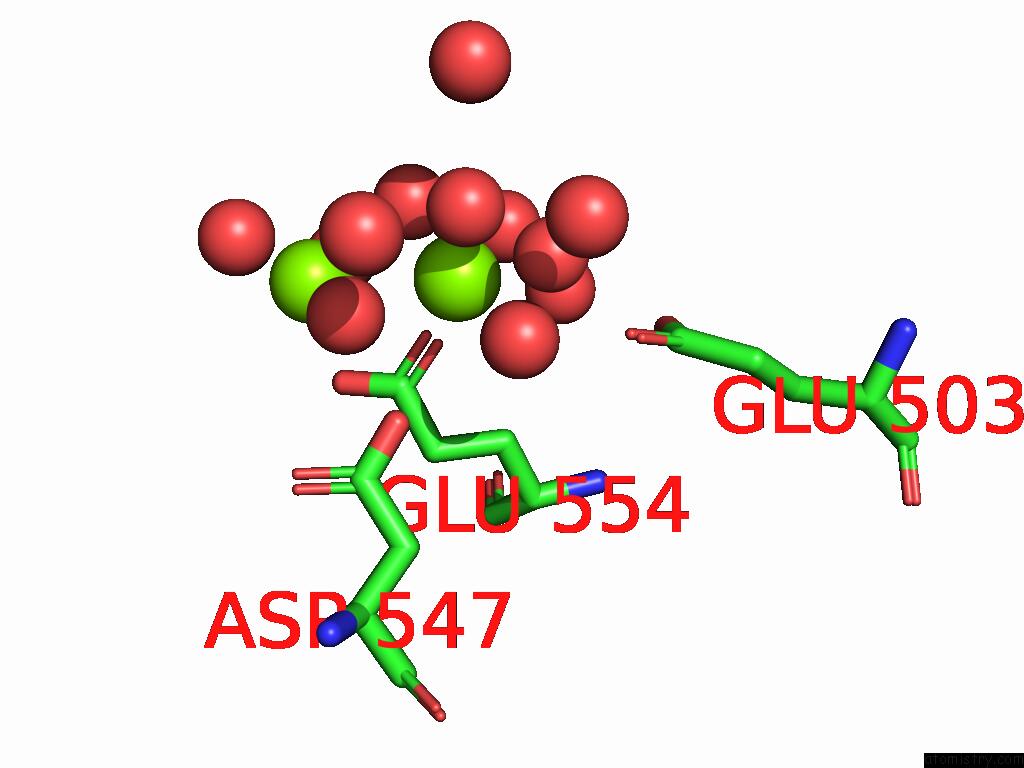

Mono view

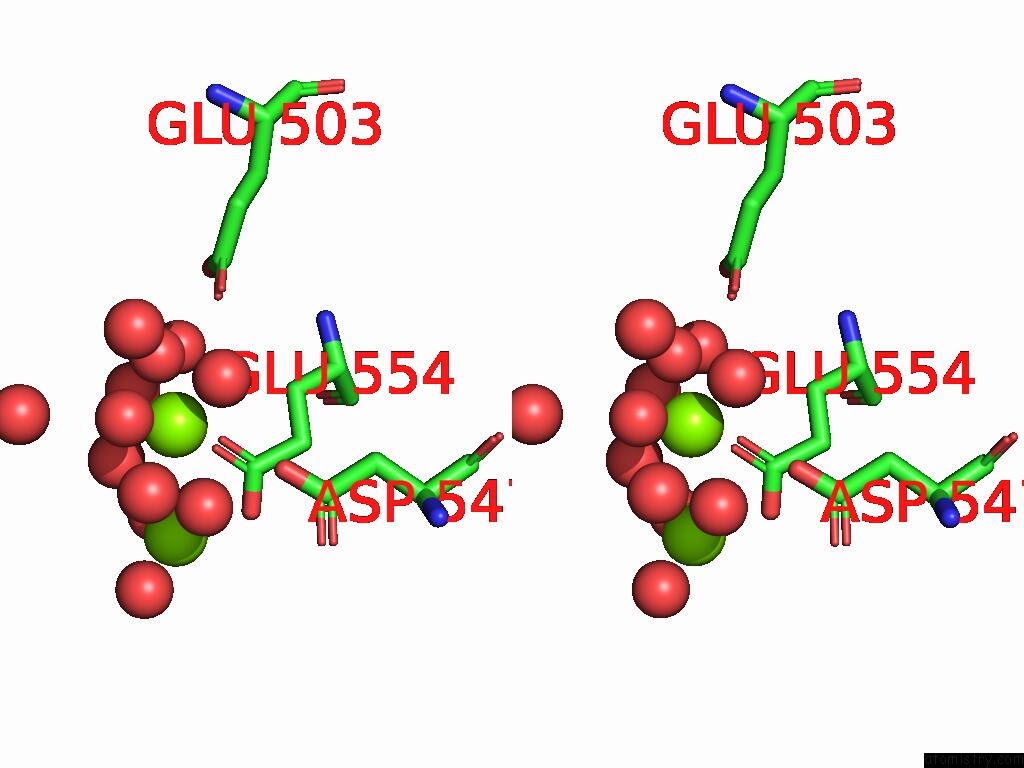

Stereo pair view

A full contact list of Magnesium with other atoms in the Mg binding site number 1 of Plasmodium Vivax Aspartyl-Trna Synthetase in Complex with Aspartyl Sulfamoyl Adenosine (Asp-Ams) Complex within 5.0Å range:
probe atom residue distance (Å) B Occ
A:Mg702

b:37.3
occ:0.58
 O A:HOH963 2.0 38.4 0.9
OE1 A:GLU554 2.1 28.5 1.0
O A:HOH1025 2.1 35.3 0.9
O A:HOH1189 2.1 30.9 0.9
O A:HOH801 2.2 44.7 1.0
O A:HOH811 2.5 37.7 1.0
O A:HOH1089 3.1 53.3 1.0
CD A:GLU554 3.2 26.3 1.0
MG A:MG703 3.3 30.4 0.8
OD2 A:ASP547 3.6 30.0 1.0
OE2 A:GLU554 3.9 28.9 1.0
OE1 A:GLU503 4.1 33.7 1.0
CG A:GLU554 4.2 23.8 1.0
O A:HOH916 4.3 42.7 1.0
CB A:GLU554 4.3 21.4 1.0
OE2 A:GLU503 4.4 32.1 1.0
O A:HOH1087 4.5 35.5 0.7
O A:HOH1081 4.5 32.5 0.8
O A:HOH1069 4.6 43.7 1.0
CD A:GLU503 4.7 33.5 1.0
O A:HOH1130 4.7 44.5 1.0
CG A:ASP547 4.7 29.6 1.0
O A:HOH955 4.8 65.8 1.0

Magnesium binding site 2 out of 4 in 9m5o

Go back to Magnesium Binding Sites List in 9m5o
Magnesium binding site 2 out of 4 in the Plasmodium Vivax Aspartyl-Trna Synthetase in Complex with Aspartyl Sulfamoyl Adenosine (Asp-Ams) Complex


Mono view

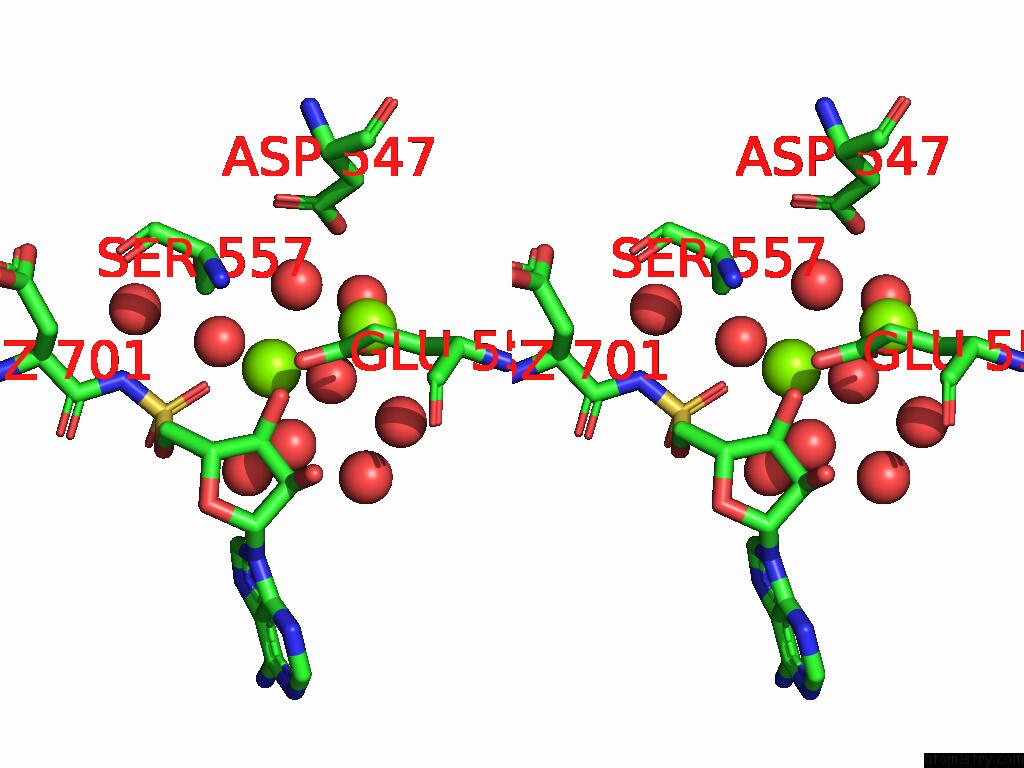

Stereo pair view

A full contact list of Magnesium with other atoms in the Mg binding site number 2 of Plasmodium Vivax Aspartyl-Trna Synthetase in Complex with Aspartyl Sulfamoyl Adenosine (Asp-Ams) Complex within 5.0Å range:
probe atom residue distance (Å) B Occ
A:Mg703

b:30.4
occ:0.77
 O A:HOH1087 2.1 35.5 0.7
OE2 A:GLU554 2.4 28.9 1.0
O A:HOH1081 2.4 32.5 0.8
OAY A:DSZ701 2.5 23.4 0.9
O A:HOH1025 2.7 35.3 0.9
O A:HOH811 2.7 37.7 1.0
OE1 A:GLU554 2.8 28.5 1.0
CD A:GLU554 2.9 26.3 1.0
MG A:MG702 3.3 37.3 0.6
O A:HOH1147 3.5 59.3 1.0
SBE A:DSZ701 3.7 24.4 0.9
OG A:SER557 4.1 34.8 1.0
CB A:SER557 4.1 27.4 1.0
OAX A:DSZ701 4.2 24.2 0.9
O A:HOH1089 4.3 53.3 1.0
CG A:GLU554 4.4 23.8 1.0
O3' A:DSZ701 4.5 22.3 0.9
O A:HOH1071 4.5 37.3 1.0
O A:HOH1052 4.5 38.7 1.0
C3' A:DSZ701 4.6 23.3 0.9
O A:HOH1189 4.6 30.9 0.9
OD2 A:ASP547 4.7 30.0 1.0
NAT A:DSZ701 4.7 22.4 0.9
O5' A:DSZ701 4.8 19.7 0.9

Magnesium binding site 3 out of 4 in 9m5o

Go back to Magnesium Binding Sites List in 9m5o
Magnesium binding site 3 out of 4 in the Plasmodium Vivax Aspartyl-Trna Synthetase in Complex with Aspartyl Sulfamoyl Adenosine (Asp-Ams) Complex

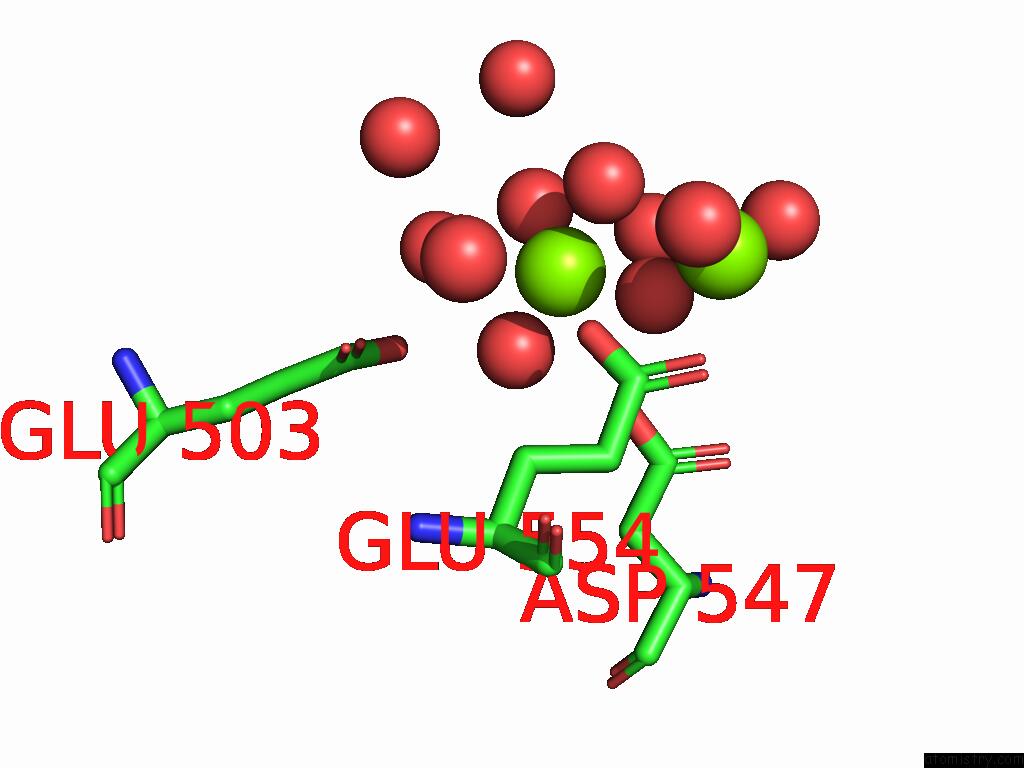

Mono view

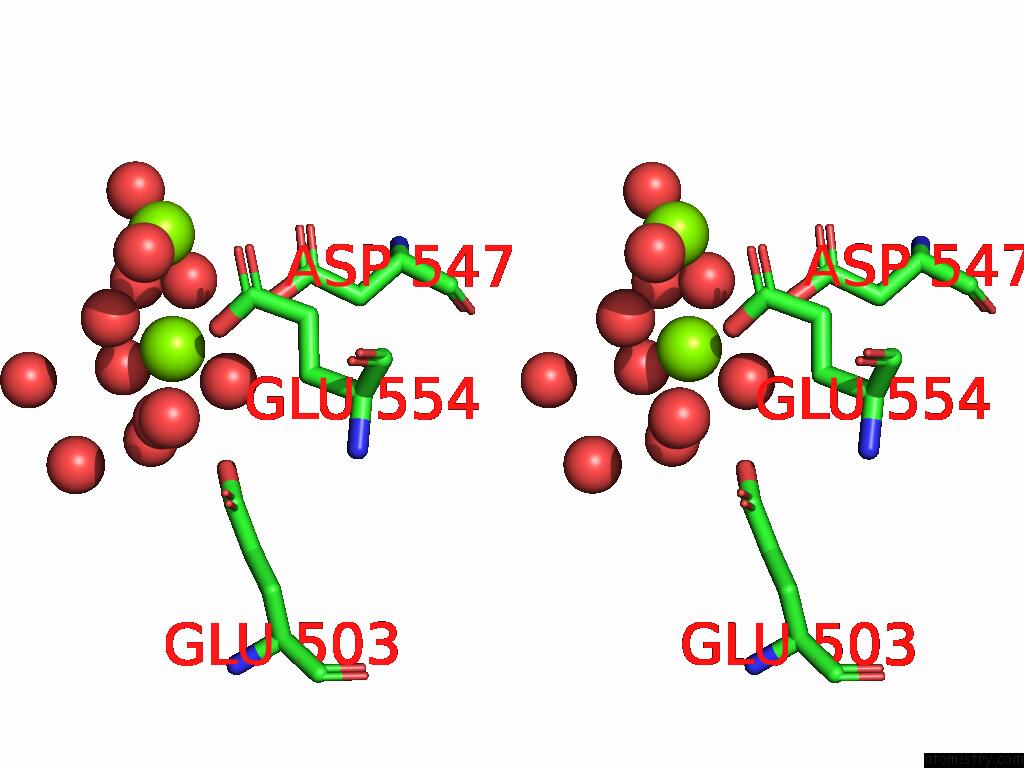

Stereo pair view

A full contact list of Magnesium with other atoms in the Mg binding site number 3 of Plasmodium Vivax Aspartyl-Trna Synthetase in Complex with Aspartyl Sulfamoyl Adenosine (Asp-Ams) Complex within 5.0Å range:
probe atom residue distance (Å) B Occ
B:Mg702

b:28.7
occ:0.74
 O B:HOH921 2.1 28.0 0.9
O B:HOH1206 2.1 31.3 1.0
O B:HOH823 2.1 22.6 0.8
OE2 B:GLU554 2.1 28.3 1.0
O B:HOH1062 2.1 29.5 1.0
O B:HOH816 2.1 28.1 0.8
CD B:GLU554 3.2 24.2 1.0
MG B:MG703 3.3 32.2 0.8
OD2 B:ASP547 3.5 29.5 1.0
OE1 B:GLU554 3.9 26.7 1.0
OE2 B:GLU503 4.0 35.7 1.0
O B:HOH1145 4.0 60.0 1.0
O B:HOH1159 4.1 40.8 1.0
O B:HOH1077 4.2 47.1 1.0
O B:HOH968 4.2 31.0 1.0
CG B:GLU554 4.2 24.3 1.0
OE1 B:GLU503 4.3 30.2 1.0
O B:HOH1005 4.3 29.6 0.8
O B:HOH1117 4.3 34.8 0.7
CB B:GLU554 4.4 23.9 1.0
CD B:GLU503 4.6 31.8 1.0
O B:HOH1022 4.6 43.6 1.0
CG B:ASP547 4.7 28.6 1.0

Magnesium binding site 4 out of 4 in 9m5o

Go back to Magnesium Binding Sites List in 9m5o
Magnesium binding site 4 out of 4 in the Plasmodium Vivax Aspartyl-Trna Synthetase in Complex with Aspartyl Sulfamoyl Adenosine (Asp-Ams) Complex

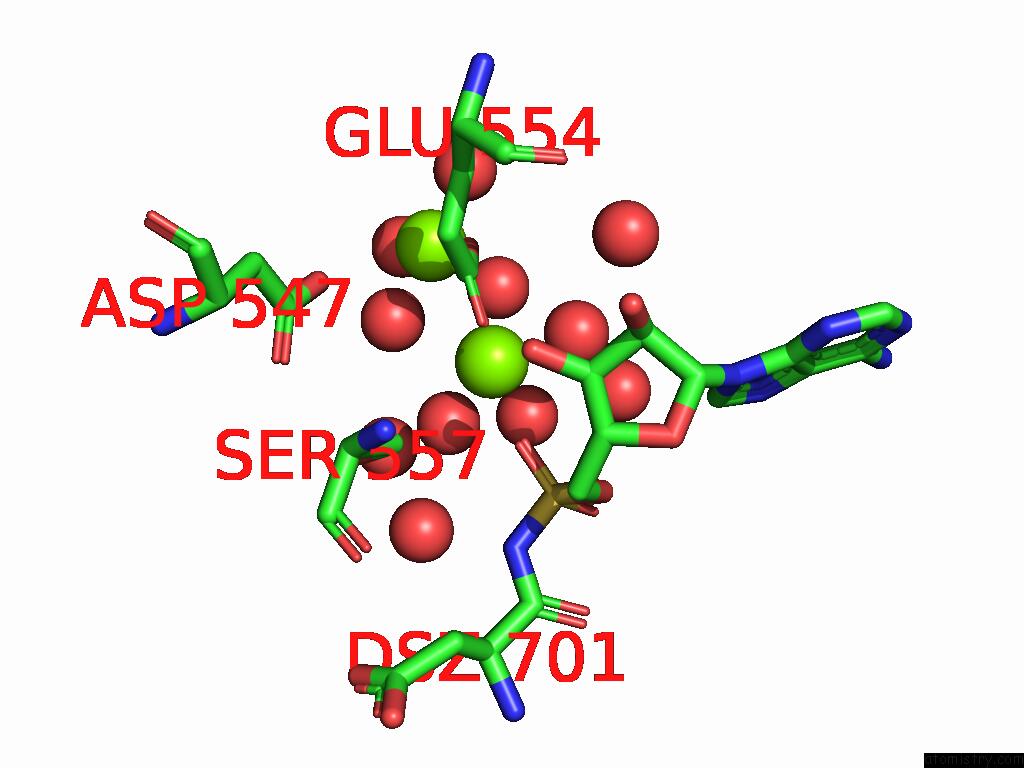

Mono view

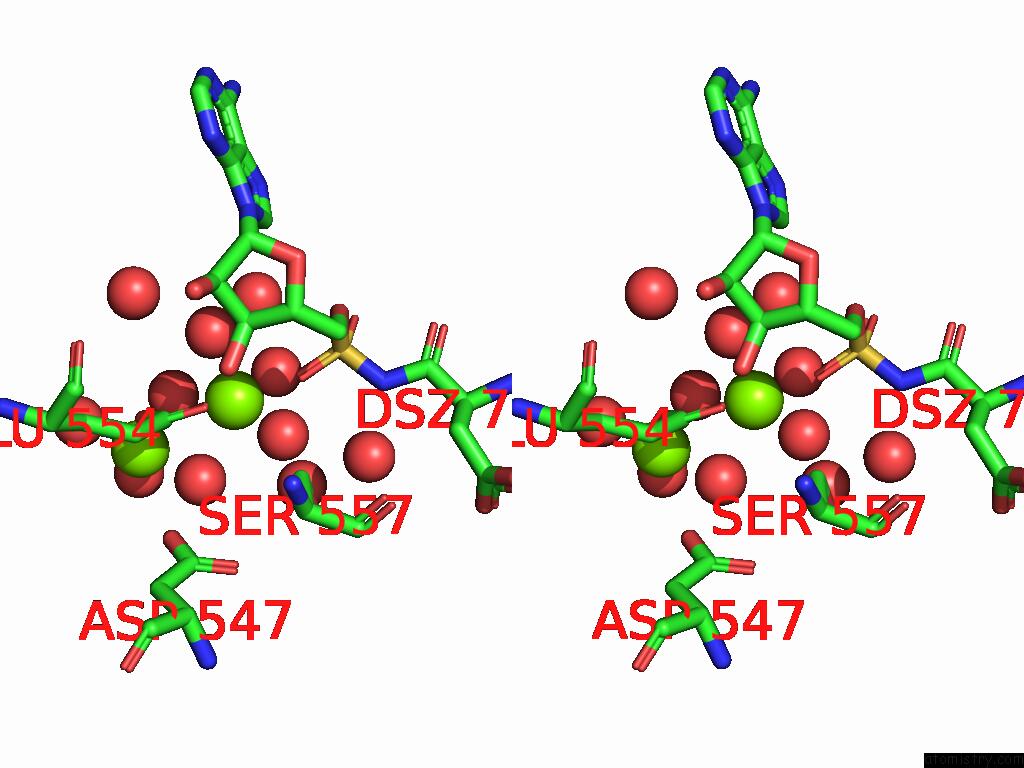

Stereo pair view

A full contact list of Magnesium with other atoms in the Mg binding site number 4 of Plasmodium Vivax Aspartyl-Trna Synthetase in Complex with Aspartyl Sulfamoyl Adenosine (Asp-Ams) Complex within 5.0Å range:
probe atom residue distance (Å) B Occ
B:Mg703

b:32.2
occ:0.85
 O B:HOH1117 2.1 34.8 0.7
O B:HOH1005 2.2 29.6 0.8
OE1 B:GLU554 2.3 26.7 1.0
OAY B:DSZ701 2.5 25.5 1.0
O B:HOH1062 2.6 29.5 1.0
O B:HOH823 2.7 22.6 0.8
OE2 B:GLU554 2.9 28.3 1.0
O B:HOH1195 2.9 57.3 1.0
CD B:GLU554 2.9 24.2 1.0
MG B:MG702 3.3 28.7 0.7
O B:HOH1165 3.5 41.0 0.8
SBE B:DSZ701 3.8 24.8 1.0
CB B:SER557 4.1 25.7 1.0
OG B:SER557 4.1 30.4 1.0
OAX B:DSZ701 4.2 23.4 1.0
O B:HOH1114 4.4 37.2 1.0
CG B:GLU554 4.4 24.3 1.0
O3' B:DSZ701 4.5 24.8 1.0
O B:HOH1172 4.6 57.9 1.0
O B:HOH1066 4.6 35.0 1.0
C3' B:DSZ701 4.6 20.8 1.0
OD2 B:ASP547 4.6 29.5 1.0
O B:HOH1206 4.7 31.3 1.0
NAT B:DSZ701 4.7 20.6 1.0
O5' B:DSZ701 4.8 22.6 1.0
O B:HOH921 4.9 28.0 0.9

Reference:

N.Ketprasit, C.W.Tai, V.K.Sharma, Y.Manickam, Y.Khandokar, W.Ye, C.Dogovski, D.H.Hilko, C.Morton, A.S.C.Braun, M.Leeming, S.Bagale, P.I.Pradeepkumar, S.Panjikar, S.A.Poulsen, M.D.W.Griffin, A.Sharma, L.Tilley, S.C.Xie. Natural Product-Mediated Reaction Hijacking Mechanism Validates Plasmodium Aspartyl-Trna Synthetase As An Antimalarial Drug Target To Be Published.
