Magnesium in PDB 9moc: Structure of Native Murine Cardiac Thin Filament Variant I79N in Troponin T at Pca=5.8 in CA2+-Free Rotated State (Upper Strand)

The binding sites of Magnesium atom in the Structure of Native Murine Cardiac Thin Filament Variant I79N in Troponin T at Pca=5.8 in CA2+-Free Rotated State (Upper Strand) (pdb code 9moc). This binding sites where shown within 5.0 Angstroms radius around Magnesium atom.
In total 7 binding sites of Magnesium where determined in the Structure of Native Murine Cardiac Thin Filament Variant I79N in Troponin T at Pca=5.8 in CA2+-Free Rotated State (Upper Strand), PDB code: 9moc:
Jump to Magnesium binding site number: 1; 2; 3; 4; 5; 6; 7;

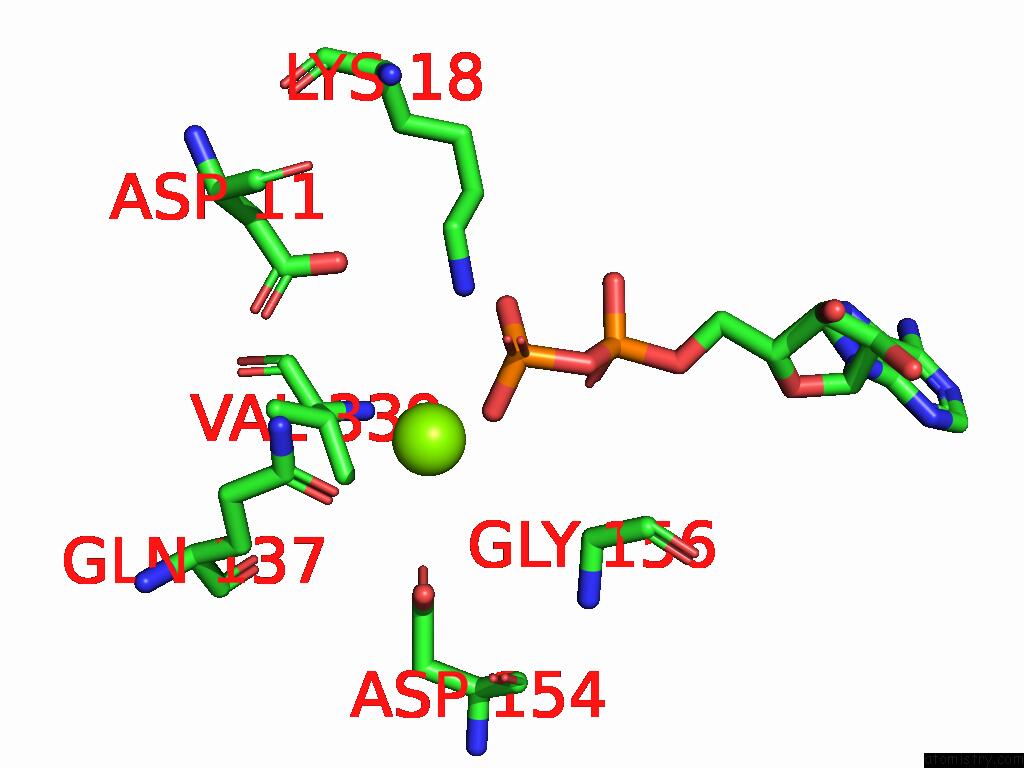

Magnesium binding site 1 out of 7 in the Structure of Native Murine Cardiac Thin Filament Variant I79N in Troponin T at Pca=5.8 in CA2+-Free Rotated State (Upper Strand)


Mono view


Stereo pair view

A full contact list of Magnesium with other atoms in the Mg binding site number 1 of Structure of Native Murine Cardiac Thin Filament Variant I79N in Troponin T at Pca=5.8 in CA2+-Free Rotated State (Upper Strand) within 5.0Å range: probe atom residue distance (Å) B Occ A:Mg402 b:8.0 occ:1.00 O1B A:ADP401 2.0 12.0 1.0 OE1 A:GLN137 2.8 13.6 1.0 PB A:ADP401 3.3 12.0 1.0 O2B A:ADP401 3.7 12.0 1.0 CD A:GLN137 3.7 13.6 1.0 OD2 A:ASP154 3.8 8.8 1.0 NE2 A:GLN137 4.0 13.6 1.0 O3B A:ADP401 4.2 12.0 1.0 O3A A:ADP401 4.3 12.0 1.0 O1A A:ADP401 4.4 12.0 1.0 NZ A:LYS18 4.4 11.4 1.0 OD1 A:ASP154 4.4 8.8 1.0 CG2 A:VAL339 4.5 10.7 1.0 CG A:ASP154 4.6 8.8 1.0 CA A:GLY156 4.7 9.1 1.0 OD2 A:ASP11 4.8 14.5 1.0 CB A:VAL339 4.9 10.7 1.0 CG A:GLN137 4.9 13.6 1.0 PA A:ADP401 5.0 12.0 1.0

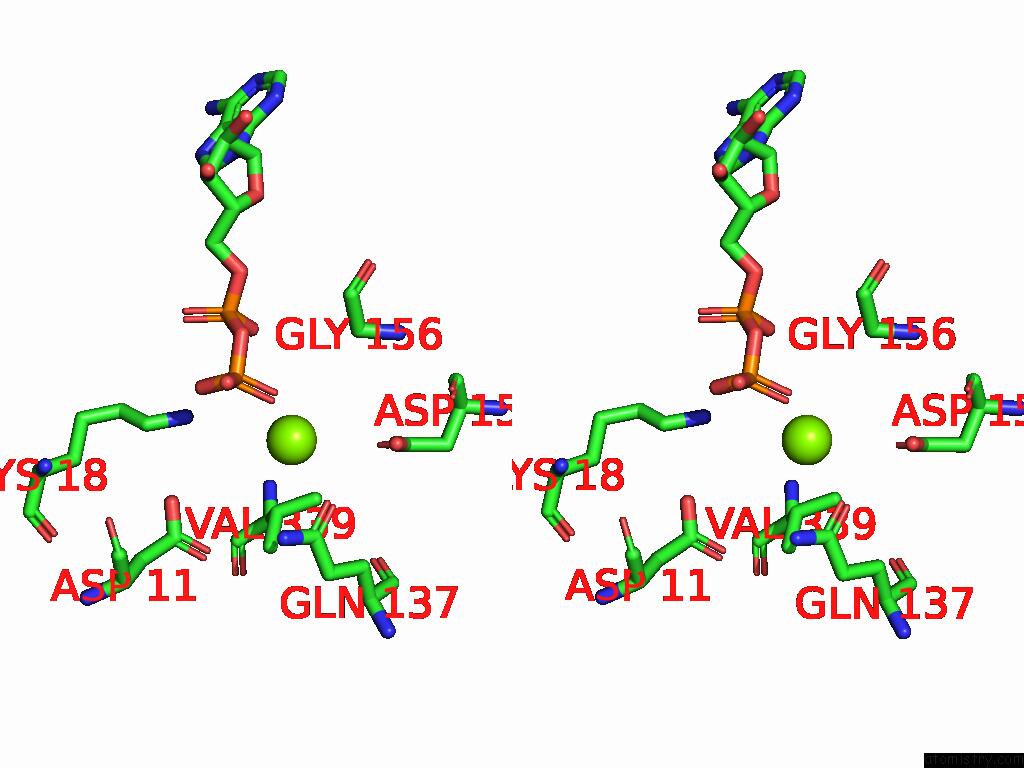

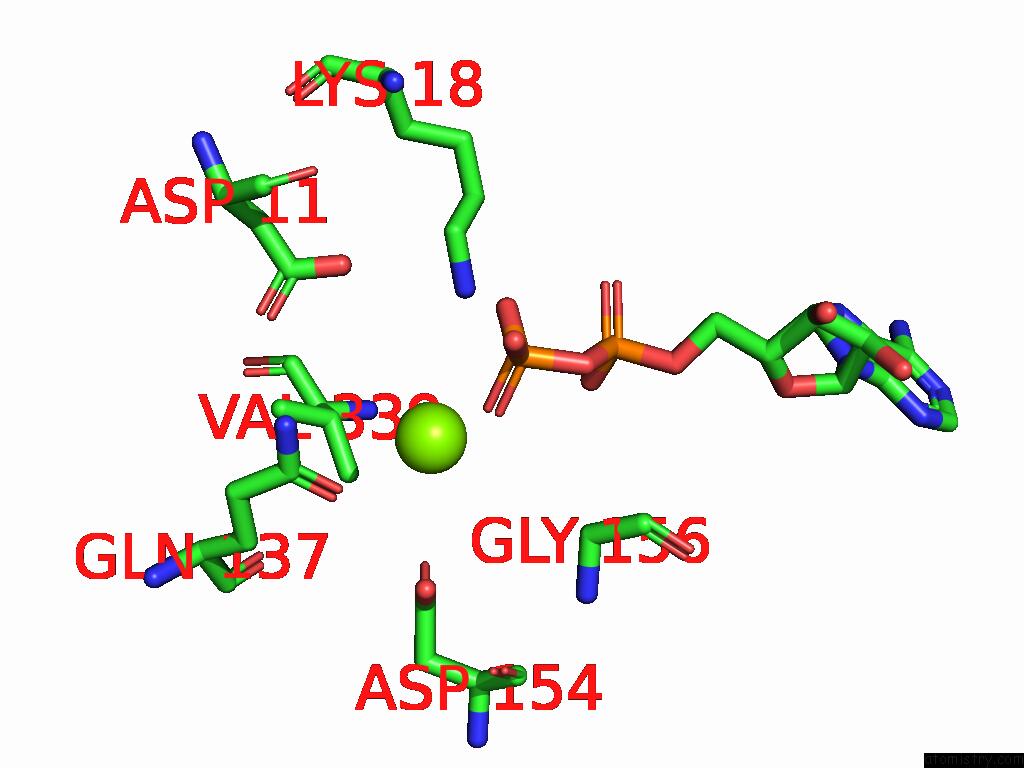

Magnesium binding site 2 out of 7 in the Structure of Native Murine Cardiac Thin Filament Variant I79N in Troponin T at Pca=5.8 in CA2+-Free Rotated State (Upper Strand)


Mono view


Stereo pair view

A full contact list of Magnesium with other atoms in the Mg binding site number 2 of Structure of Native Murine Cardiac Thin Filament Variant I79N in Troponin T at Pca=5.8 in CA2+-Free Rotated State (Upper Strand) within 5.0Å range: probe atom residue distance (Å) B Occ B:Mg402 b:8.0 occ:1.00 O1B B:ADP401 2.0 12.0 1.0 OE1 B:GLN137 2.8 13.6 1.0 PB B:ADP401 3.3 12.0 1.0 O2B B:ADP401 3.7 12.0 1.0 CD B:GLN137 3.7 13.6 1.0 OD2 B:ASP154 3.8 8.8 1.0 NE2 B:GLN137 4.0 13.6 1.0 O3B B:ADP401 4.2 12.0 1.0 O3A B:ADP401 4.3 12.0 1.0 O1A B:ADP401 4.4 12.0 1.0 NZ B:LYS18 4.4 11.4 1.0 OD1 B:ASP154 4.4 8.8 1.0 CG2 B:VAL339 4.5 10.7 1.0 CG B:ASP154 4.6 8.8 1.0 CA B:GLY156 4.7 9.1 1.0 OD2 B:ASP11 4.8 14.5 1.0 CB B:VAL339 4.9 10.7 1.0 CG B:GLN137 4.9 13.6 1.0 PA B:ADP401 5.0 12.0 1.0

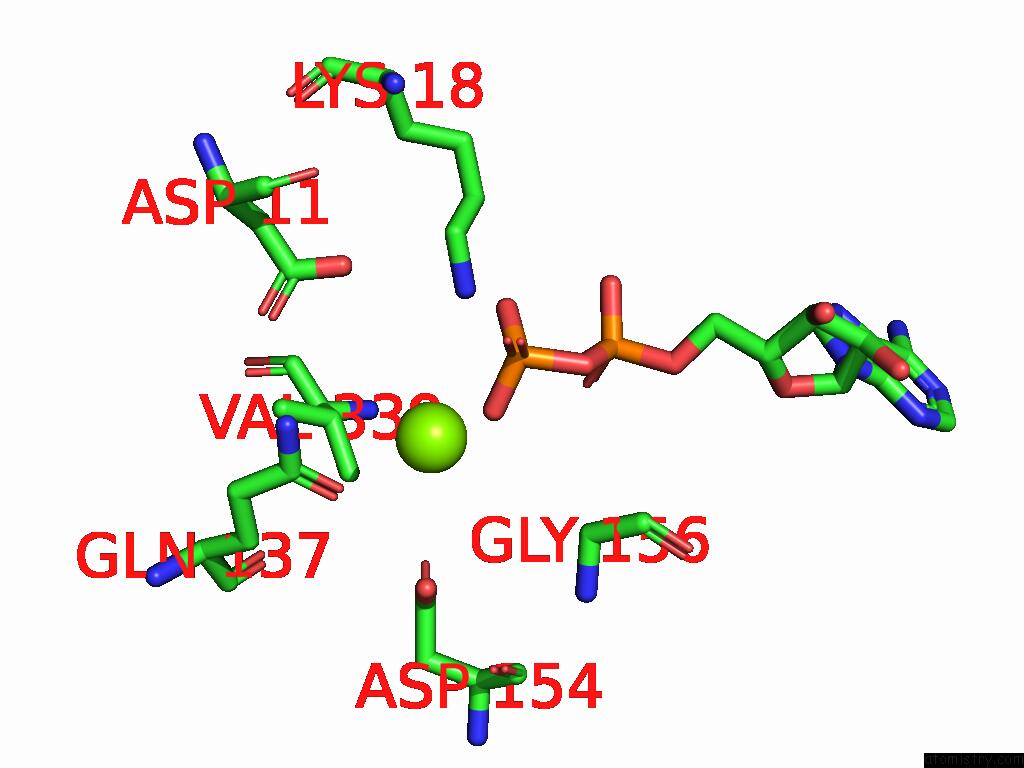

Magnesium binding site 3 out of 7 in the Structure of Native Murine Cardiac Thin Filament Variant I79N in Troponin T at Pca=5.8 in CA2+-Free Rotated State (Upper Strand)


Mono view


Stereo pair view

A full contact list of Magnesium with other atoms in the Mg binding site number 3 of Structure of Native Murine Cardiac Thin Filament Variant I79N in Troponin T at Pca=5.8 in CA2+-Free Rotated State (Upper Strand) within 5.0Å range: probe atom residue distance (Å) B Occ C:Mg402 b:8.0 occ:1.00 O1B C:ADP401 2.0 12.0 1.0 OE1 C:GLN137 2.8 13.6 1.0 PB C:ADP401 3.3 12.0 1.0 CD C:GLN137 3.7 13.6 1.0 O2B C:ADP401 3.7 12.0 1.0 OD2 C:ASP154 3.8 8.8 1.0 NE2 C:GLN137 4.0 13.6 1.0 O3B C:ADP401 4.2 12.0 1.0 O3A C:ADP401 4.3 12.0 1.0 O1A C:ADP401 4.4 12.0 1.0 NZ C:LYS18 4.4 11.4 1.0 OD1 C:ASP154 4.4 8.8 1.0 CG2 C:VAL339 4.5 10.7 1.0 CG C:ASP154 4.6 8.8 1.0 CA C:GLY156 4.7 9.1 1.0 OD2 C:ASP11 4.8 14.5 1.0 CB C:VAL339 4.9 10.7 1.0 CG C:GLN137 4.9 13.6 1.0 PA C:ADP401 5.0 12.0 1.0

Magnesium binding site 4 out of 7 in the Structure of Native Murine Cardiac Thin Filament Variant I79N in Troponin T at Pca=5.8 in CA2+-Free Rotated State (Upper Strand)


Mono view


Stereo pair view

A full contact list of Magnesium with other atoms in the Mg binding site number 4 of Structure of Native Murine Cardiac Thin Filament Variant I79N in Troponin T at Pca=5.8 in CA2+-Free Rotated State (Upper Strand) within 5.0Å range: probe atom residue distance (Å) B Occ D:Mg402 b:8.0 occ:1.00 O1B D:ADP401 2.0 12.0 1.0 OE1 D:GLN137 2.8 13.6 1.0 PB D:ADP401 3.3 12.0 1.0 CD D:GLN137 3.7 13.6 1.0 O2B D:ADP401 3.7 12.0 1.0 OD2 D:ASP154 3.8 8.8 1.0 NE2 D:GLN137 4.0 13.6 1.0 O3B D:ADP401 4.2 12.0 1.0 O3A D:ADP401 4.3 12.0 1.0 O1A D:ADP401 4.4 12.0 1.0 NZ D:LYS18 4.4 11.4 1.0 OD1 D:ASP154 4.4 8.8 1.0 CG2 D:VAL339 4.5 10.7 1.0 CG D:ASP154 4.6 8.8 1.0 CA D:GLY156 4.7 9.1 1.0 OD2 D:ASP11 4.8 14.5 1.0 CB D:VAL339 4.9 10.7 1.0 CG D:GLN137 4.9 13.6 1.0 PA D:ADP401 5.0 12.0 1.0

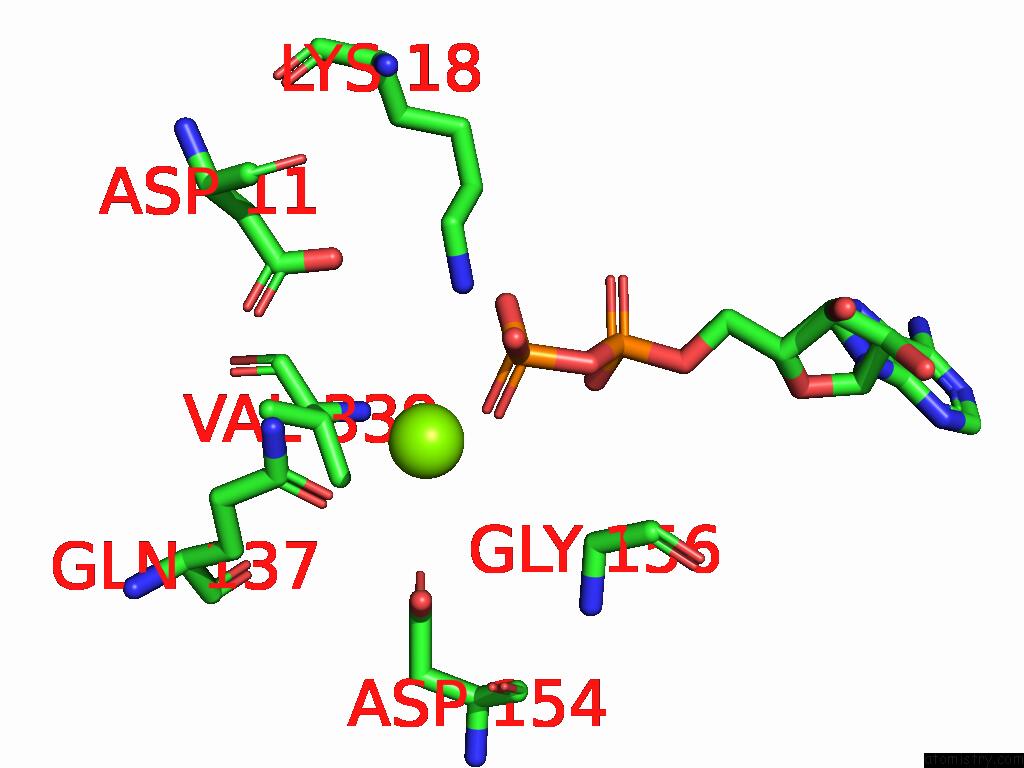

Magnesium binding site 5 out of 7 in the Structure of Native Murine Cardiac Thin Filament Variant I79N in Troponin T at Pca=5.8 in CA2+-Free Rotated State (Upper Strand)


Mono view


Stereo pair view

A full contact list of Magnesium with other atoms in the Mg binding site number 5 of Structure of Native Murine Cardiac Thin Filament Variant I79N in Troponin T at Pca=5.8 in CA2+-Free Rotated State (Upper Strand) within 5.0Å range: probe atom residue distance (Å) B Occ E:Mg402 b:8.0 occ:1.00 O1B E:ADP401 2.0 12.0 1.0 OE1 E:GLN137 2.8 13.6 1.0 PB E:ADP401 3.3 12.0 1.0 CD E:GLN137 3.7 13.6 1.0 O2B E:ADP401 3.7 12.0 1.0 OD2 E:ASP154 3.8 8.8 1.0 NE2 E:GLN137 4.0 13.6 1.0 O3B E:ADP401 4.2 12.0 1.0 O3A E:ADP401 4.3 12.0 1.0 O1A E:ADP401 4.4 12.0 1.0 NZ E:LYS18 4.4 11.4 1.0 OD1 E:ASP154 4.4 8.8 1.0 CG2 E:VAL339 4.5 10.7 1.0 CG E:ASP154 4.6 8.8 1.0 CA E:GLY156 4.7 9.1 1.0 OD2 E:ASP11 4.8 14.5 1.0 CB E:VAL339 4.9 10.7 1.0 CG E:GLN137 4.9 13.6 1.0 PA E:ADP401 5.0 12.0 1.0

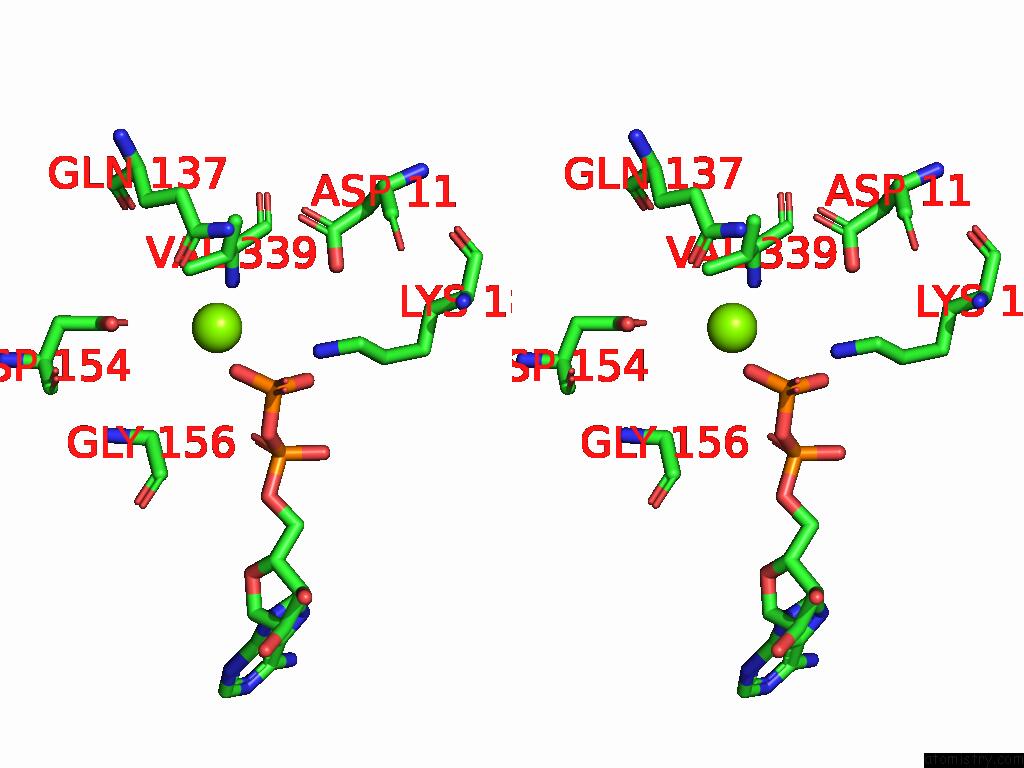

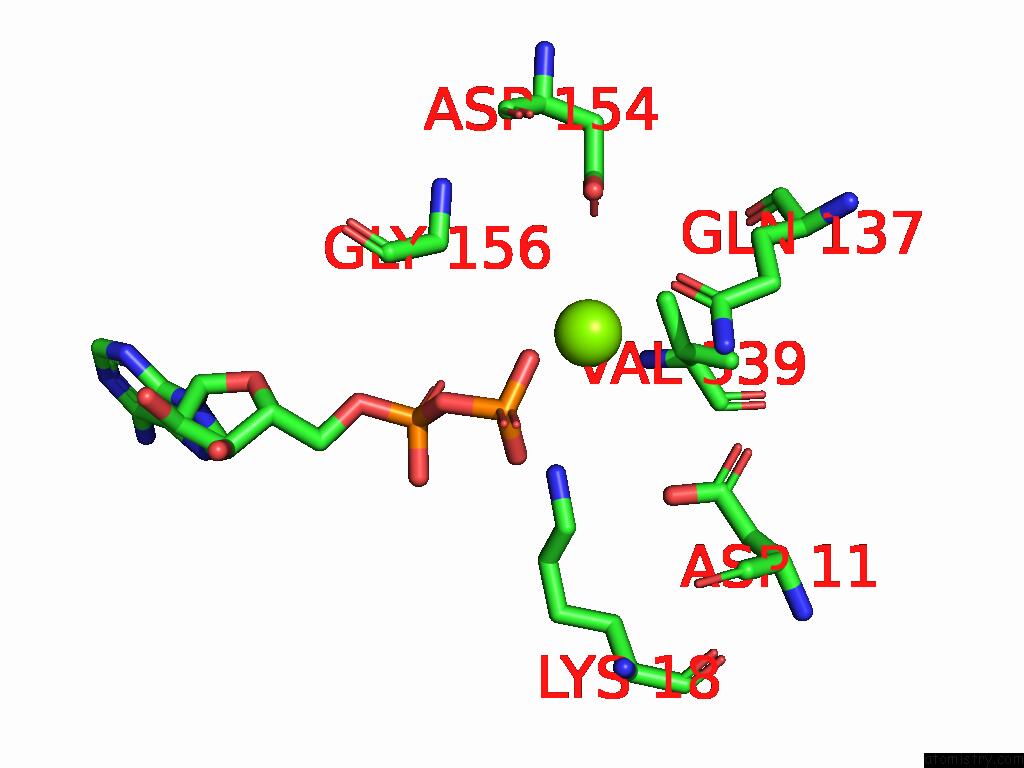

Magnesium binding site 6 out of 7 in the Structure of Native Murine Cardiac Thin Filament Variant I79N in Troponin T at Pca=5.8 in CA2+-Free Rotated State (Upper Strand)


Mono view


Stereo pair view

A full contact list of Magnesium with other atoms in the Mg binding site number 6 of Structure of Native Murine Cardiac Thin Filament Variant I79N in Troponin T at Pca=5.8 in CA2+-Free Rotated State (Upper Strand) within 5.0Å range: probe atom residue distance (Å) B Occ F:Mg402 b:8.0 occ:1.00 O1B F:ADP401 2.0 12.0 1.0 OE1 F:GLN137 2.8 13.6 1.0 PB F:ADP401 3.3 12.0 1.0 CD F:GLN137 3.7 13.6 1.0 O2B F:ADP401 3.7 12.0 1.0 OD2 F:ASP154 3.8 8.8 1.0 NE2 F:GLN137 4.0 13.6 1.0 O3B F:ADP401 4.2 12.0 1.0 O3A F:ADP401 4.3 12.0 1.0 O1A F:ADP401 4.4 12.0 1.0 NZ F:LYS18 4.4 11.4 1.0 OD1 F:ASP154 4.4 8.8 1.0 CG2 F:VAL339 4.5 10.7 1.0 CG F:ASP154 4.6 8.8 1.0 CA F:GLY156 4.7 9.1 1.0 OD2 F:ASP11 4.8 14.5 1.0 CB F:VAL339 4.9 10.7 1.0 CG F:GLN137 4.9 13.6 1.0 PA F:ADP401 5.0 12.0 1.0

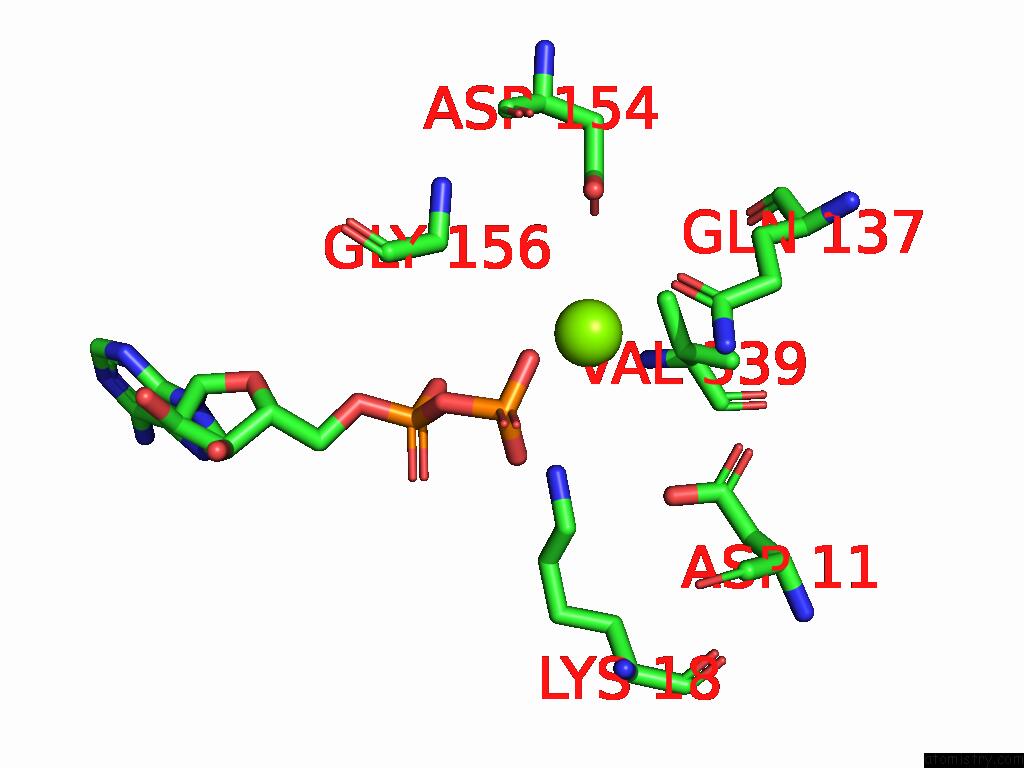

Magnesium binding site 7 out of 7 in the Structure of Native Murine Cardiac Thin Filament Variant I79N in Troponin T at Pca=5.8 in CA2+-Free Rotated State (Upper Strand)


Mono view


Stereo pair view

A full contact list of Magnesium with other atoms in the Mg binding site number 7 of Structure of Native Murine Cardiac Thin Filament Variant I79N in Troponin T at Pca=5.8 in CA2+-Free Rotated State (Upper Strand) within 5.0Å range: probe atom residue distance (Å) B Occ G:Mg402 b:8.0 occ:1.00 O1B G:ADP401 2.0 12.0 1.0 OE1 G:GLN137 2.8 13.6 1.0 PB G:ADP401 3.3 12.0 1.0 CD G:GLN137 3.7 13.6 1.0 O2B G:ADP401 3.7 12.0 1.0 OD2 G:ASP154 3.8 8.8 1.0 NE2 G:GLN137 4.0 13.6 1.0 O3B G:ADP401 4.2 12.0 1.0 O3A G:ADP401 4.3 12.0 1.0 O1A G:ADP401 4.4 12.0 1.0 NZ G:LYS18 4.4 11.4 1.0 OD1 G:ASP154 4.4 8.8 1.0 CG2 G:VAL339 4.5 10.7 1.0 CG G:ASP154 4.6 8.8 1.0 CA G:GLY156 4.7 9.1 1.0 OD2 G:ASP11 4.8 14.5 1.0 CB G:VAL339 4.9 10.7 1.0 CG G:GLN137 4.9 13.6 1.0 PA G:ADP401 5.0 12.0 1.0

C.M.Risi, V.E.Galkin. Structure of Native Murine Cardiac Thin Filament Variant I79N in Troponin T at Pca=5.8 in CA2+-Free Rotated State (Upper Strand) To Be Published.
