Magnesium in PDB 9ckr: Human G Protein-Coupled Receptor Kinase 5-D311N in Complex with Atp and Magnesium Ion

The structure of Human G Protein-Coupled Receptor Kinase 5-D311N in Complex with Atp and Magnesium Ion, PDB code: 9ckr was solved by Y.Chen, J.J.G.Tesmer, with X-Ray Crystallography technique. A brief refinement statistics is given in the table below:

Resolution Low / High (Å)	29.99 / 2.80
Space group	P 41 21 2
Cell size a, b, c (Å), α, β, γ (°)	136.598, 136.598, 70.557, 90, 90, 90
R / Rfree (%)	23.4 / 28.6

The binding sites of Magnesium atom in the Human G Protein-Coupled Receptor Kinase 5-D311N in Complex with Atp and Magnesium Ion (pdb code 9ckr). This binding sites where shown within 5.0 Angstroms radius around Magnesium atom.
In total only one binding site of Magnesium was determined in the Human G Protein-Coupled Receptor Kinase 5-D311N in Complex with Atp and Magnesium Ion, PDB code: 9ckr:

Magnesium binding site 1 out of 1 in the Human G Protein-Coupled Receptor Kinase 5-D311N in Complex with Atp and Magnesium Ion

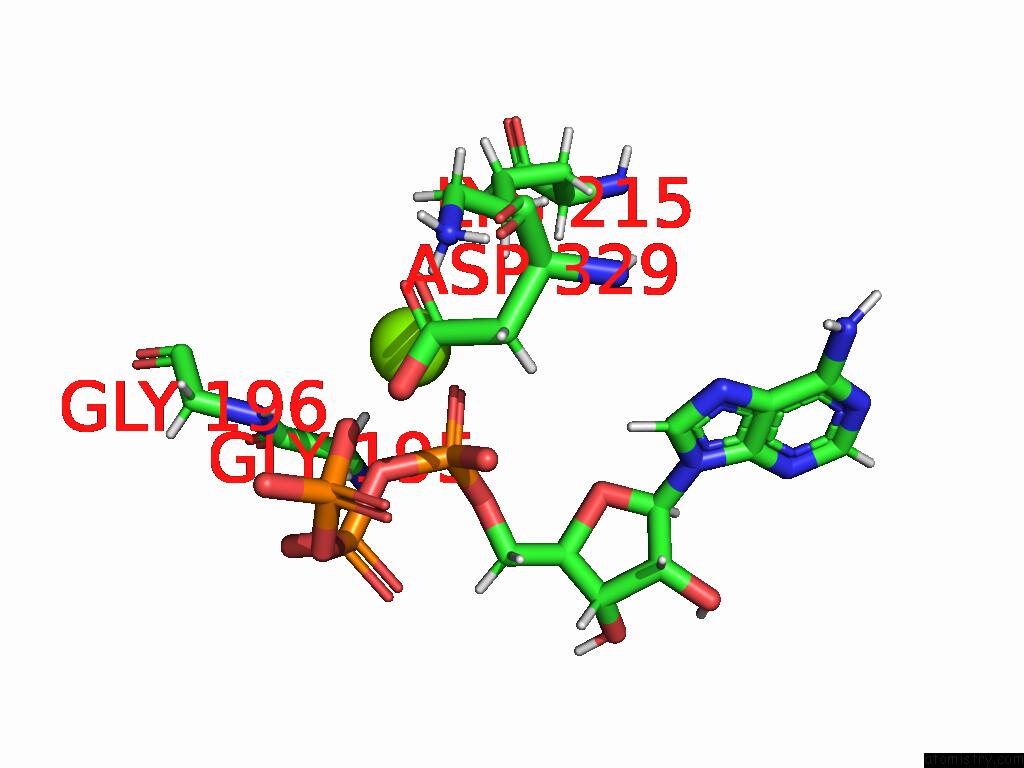

Mono view

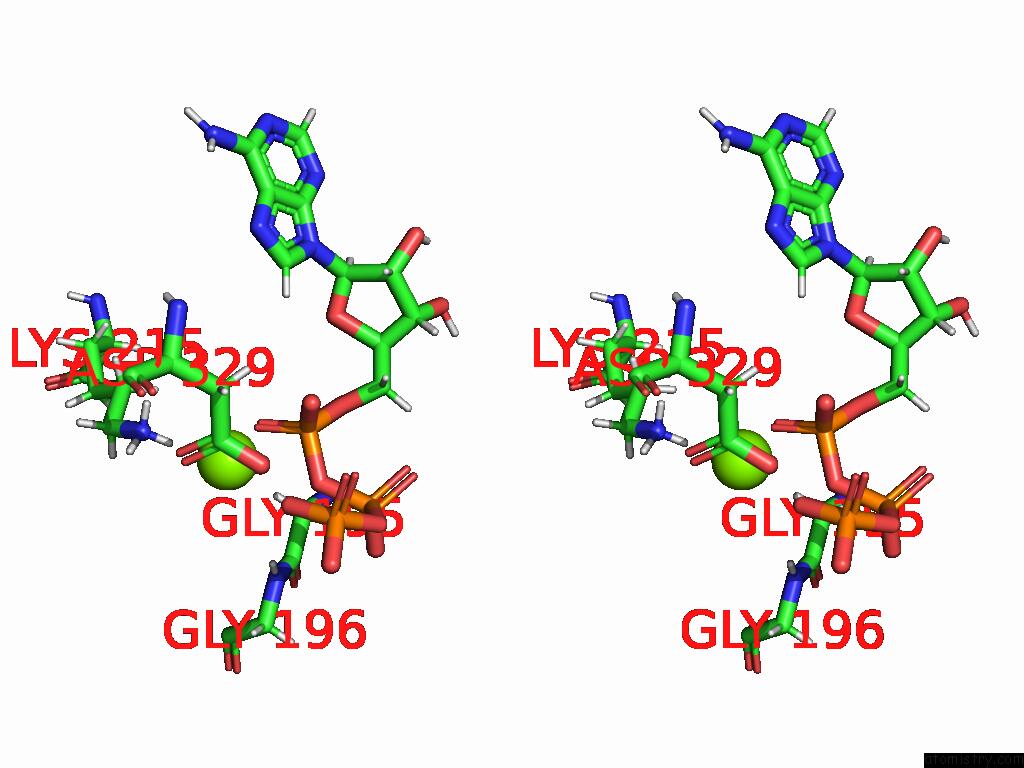

Stereo pair view

A full contact list of Magnesium with other atoms in the Mg binding site number 1 of Human G Protein-Coupled Receptor Kinase 5-D311N in Complex with Atp and Magnesium Ion within 5.0Å range: probe atom residue distance (Å) B Occ A:Mg602 b:159.6 occ:1.00 HZ2 A:LYS215 1.8 154.0 1.0 O2A A:ATP603 2.1 174.7 1.0 O2G A:ATP603 2.6 171.8 1.0 NZ A:LYS215 2.6 125.9 1.0 PA A:ATP603 2.7 176.9 1.0 HZ3 A:LYS215 2.8 154.0 1.0 HZ1 A:LYS215 2.9 154.0 1.0 O3A A:ATP603 2.9 179.3 1.0 O1A A:ATP603 2.9 165.0 1.0 CE A:LYS215 3.8 118.4 1.0 HE3 A:LYS215 3.8 145.0 1.0 HD2 A:LYS215 3.9 146.8 1.0 OD1 A:ASP329 3.9 101.5 1.0 PG A:ATP603 4.1 169.1 1.0 H A:GLY196 4.2 189.0 1.0 CG A:ASP329 4.3 101.8 1.0 OD2 A:ASP329 4.3 112.9 1.0 O5' A:ATP603 4.3 174.2 1.0 CD A:LYS215 4.4 119.9 1.0 PB A:ATP603 4.5 186.4 1.0 HE2 A:LYS215 4.5 145.0 1.0 HA3 A:GLY195 4.6 207.3 1.0 O3G A:ATP603 4.6 147.6 1.0 HD3 A:LYS215 4.8 146.8 1.0 HA2 A:GLY195 4.8 207.3 1.0 O3B A:ATP603 4.8 195.4 1.0 HA A:ASP329 4.8 104.8 1.0 O1G A:ATP603 5.0 180.6 1.0

Y.Chen, J.J.G.Tesmer. Structures of G Protein-Coupled Receptor Kinase 5 in Multiple Conformations Reveals Mechanism of Activation and Inhibition To Be Published.
