Magnesium in PDB 9csj: Crystal Structure of Human Glyoxalase Domain-Containing Protein 4 (GLOD4) at 2.33 A Resolution.

The structure of Crystal Structure of Human Glyoxalase Domain-Containing Protein 4 (GLOD4) at 2.33 A Resolution., PDB code: 9csj was solved by I.Griswold-Prenner, Y.Dou, A.Jennings, F.Kayser, with X-Ray Crystallography technique. A brief refinement statistics is given in the table below:

Resolution Low / High (Å)	45.34 / 2.33
Space group	P 41
Cell size a, b, c (Å), α, β, γ (°)	85.96, 85.96, 135.9, 90, 90, 90
R / Rfree (%)	22 / 26.9

The structure of Crystal Structure of Human Glyoxalase Domain-Containing Protein 4 (GLOD4) at 2.33 A Resolution. also contains other interesting chemical elements:

Zinc	(Zn)	5 atoms
Chlorine	(Cl)	12 atoms

The binding sites of Magnesium atom in the Crystal Structure of Human Glyoxalase Domain-Containing Protein 4 (GLOD4) at 2.33 A Resolution. (pdb code 9csj). This binding sites where shown within 5.0 Angstroms radius around Magnesium atom.
In total 3 binding sites of Magnesium where determined in the Crystal Structure of Human Glyoxalase Domain-Containing Protein 4 (GLOD4) at 2.33 A Resolution., PDB code: 9csj:
Jump to Magnesium binding site number: 1; 2; 3;

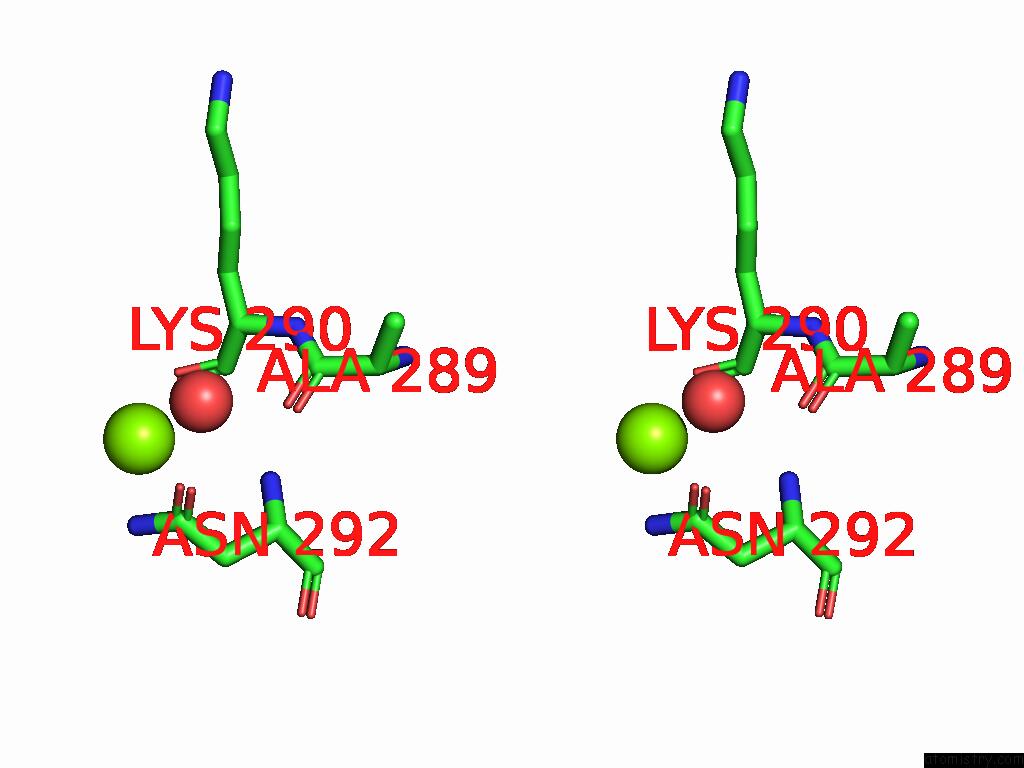

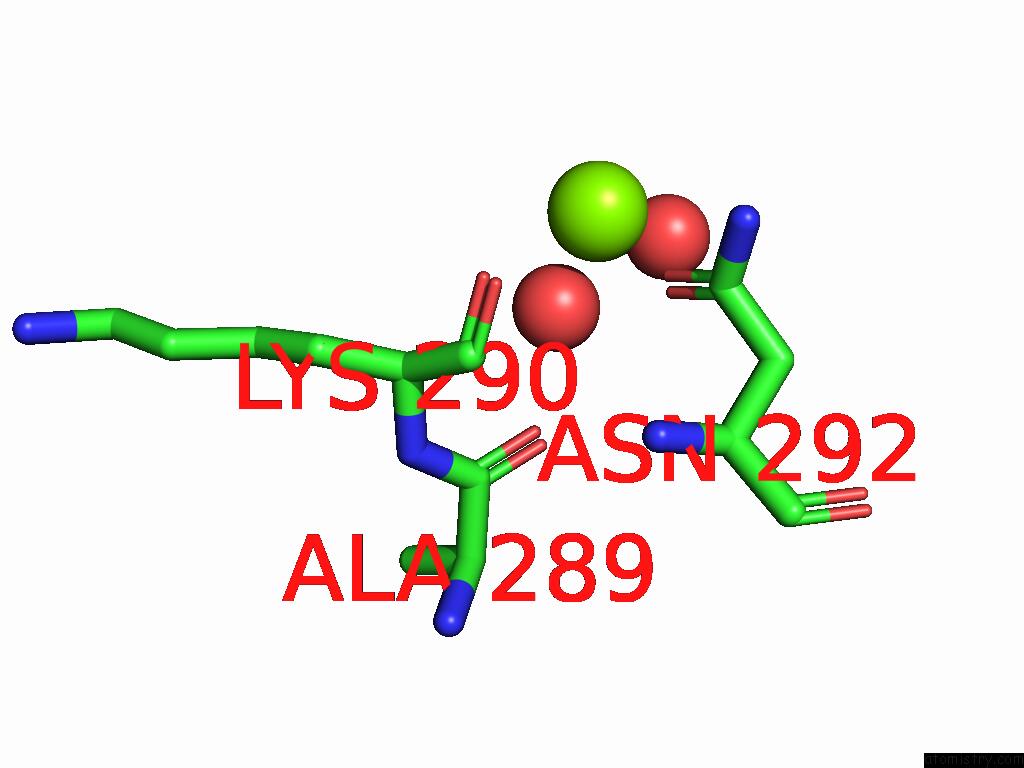

Magnesium binding site 1 out of 3 in the Crystal Structure of Human Glyoxalase Domain-Containing Protein 4 (GLOD4) at 2.33 A Resolution.


Mono view


Stereo pair view

A full contact list of Magnesium with other atoms in the Mg binding site number 1 of Crystal Structure of Human Glyoxalase Domain-Containing Protein 4 (GLOD4) at 2.33 A Resolution. within 5.0Å range: probe atom residue distance (Å) B Occ A:Mg301 b:37.0 occ:1.00 O A:HOH416 1.9 34.4 1.0 OD1 A:ASN292 2.0 30.7 1.0 O A:HOH461 2.1 45.7 1.0 CG A:ASN292 3.1 33.0 1.0 ND2 A:ASN292 3.6 32.5 1.0 O A:ALA289 4.1 28.8 1.0 O A:LYS290 4.3 31.6 1.0 CB A:ASN292 4.4 32.6 1.0 C A:LYS290 4.7 30.8 1.0 CA A:LYS290 4.8 32.1 1.0 N A:ASN292 4.9 31.5 1.0 CA A:ASN292 4.9 32.8 1.0

Magnesium binding site 2 out of 3 in the Crystal Structure of Human Glyoxalase Domain-Containing Protein 4 (GLOD4) at 2.33 A Resolution.


Mono view


Stereo pair view

A full contact list of Magnesium with other atoms in the Mg binding site number 2 of Crystal Structure of Human Glyoxalase Domain-Containing Protein 4 (GLOD4) at 2.33 A Resolution. within 5.0Å range: probe atom residue distance (Å) B Occ B:Mg301 b:34.7 occ:1.00 O B:HOH468 1.8 49.4 1.0 OD1 B:ASN292 2.1 28.4 1.0 CG B:ASN292 3.1 30.5 1.0 ND2 B:ASN292 3.6 30.0 1.0 O B:ALA289 4.2 28.1 1.0 O B:LYS290 4.4 30.1 1.0 CB B:ASN292 4.5 30.9 1.0 CA B:LYS290 4.8 30.2 1.0 C B:LYS290 4.8 29.0 1.0 CA B:ASN292 5.0 31.0 1.0

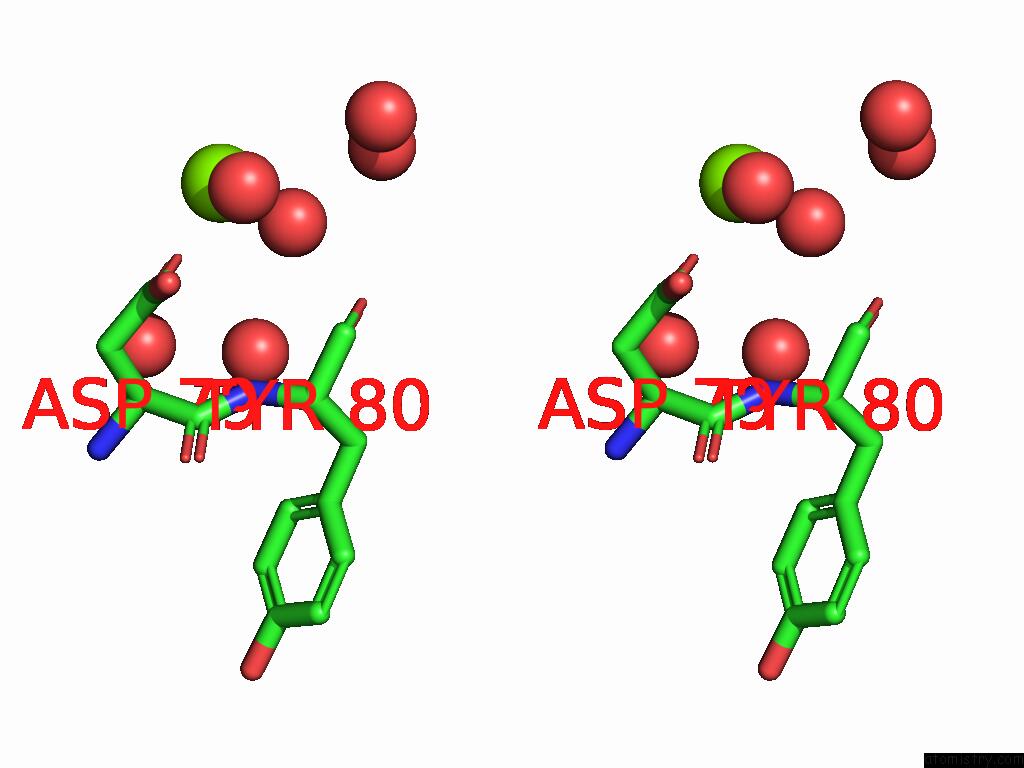

Magnesium binding site 3 out of 3 in the Crystal Structure of Human Glyoxalase Domain-Containing Protein 4 (GLOD4) at 2.33 A Resolution.


Mono view


Stereo pair view

A full contact list of Magnesium with other atoms in the Mg binding site number 3 of Crystal Structure of Human Glyoxalase Domain-Containing Protein 4 (GLOD4) at 2.33 A Resolution. within 5.0Å range: probe atom residue distance (Å) B Occ B:Mg302 b:57.6 occ:1.00 O B:HOH490 1.8 64.1 1.0 O B:HOH411 2.3 36.0 1.0 OD1 B:ASP79 2.4 47.9 1.0 CG B:ASP79 3.6 47.8 1.0 O B:HOH415 3.9 50.6 1.0 O B:HOH545 4.0 50.6 1.0 O B:HOH492 4.1 28.6 1.0 OD2 B:ASP79 4.2 52.6 1.0 O B:TYR80 4.3 34.4 1.0 CB B:ASP79 4.7 41.2 1.0 O B:HOH477 4.8 41.3 1.0 C B:TYR80 4.9 34.9 1.0 N B:TYR80 4.9 33.5 1.0

I.Griswold-Prenner, F.Kayser. Crystal Structure of Apo-Glyoxalase Domain-Containing Protein 4 (Apo-GLOD4) at 2.33 A Resolution. To Be Published.
