Magnesium in PDB 9hdp: The Human Line-1 ORF2P Target-Primed Reverse Transcription Complex with the Fingers Domain in A Closed Conformation

Enzymatic activity of The Human Line-1 ORF2P Target-Primed Reverse Transcription Complex with the Fingers Domain in A Closed Conformation

Other elements in 9hdp:

Magnesium Binding Sites:

Magnesium binding site 1 out of 1 in 9hdp

Magnesium Binding Sites List in 9hdp

Magnesium binding site 1 out of 1 in the The Human Line-1 ORF2P Target-Primed Reverse Transcription Complex with the Fingers Domain in A Closed Conformation

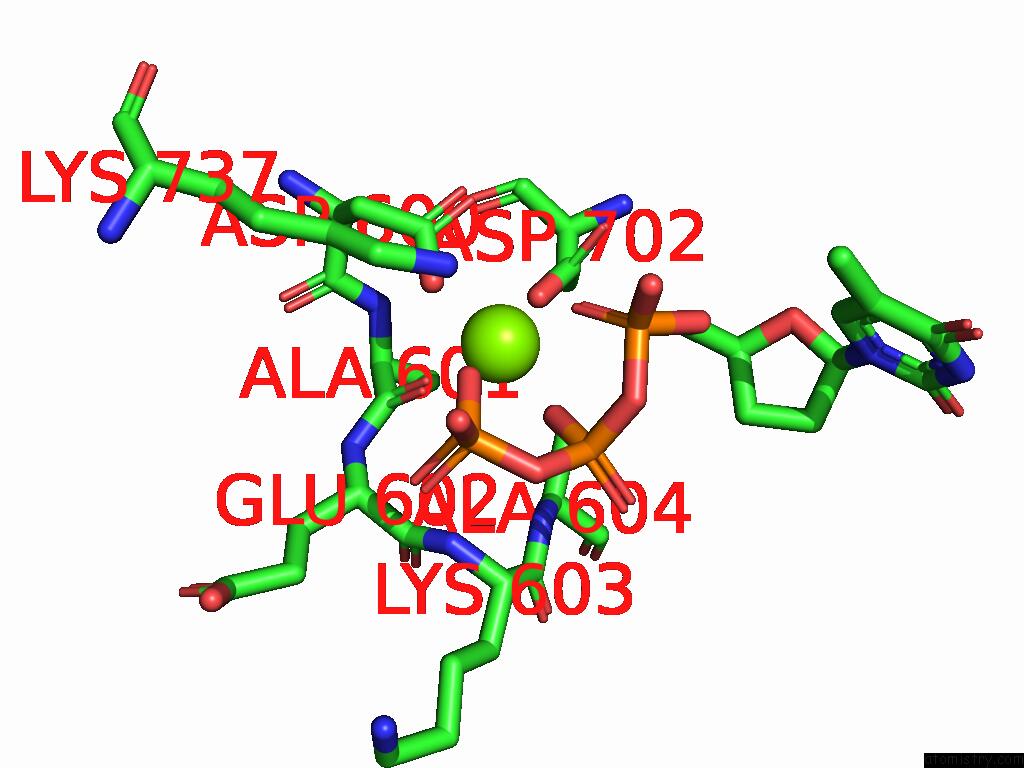

Mono view

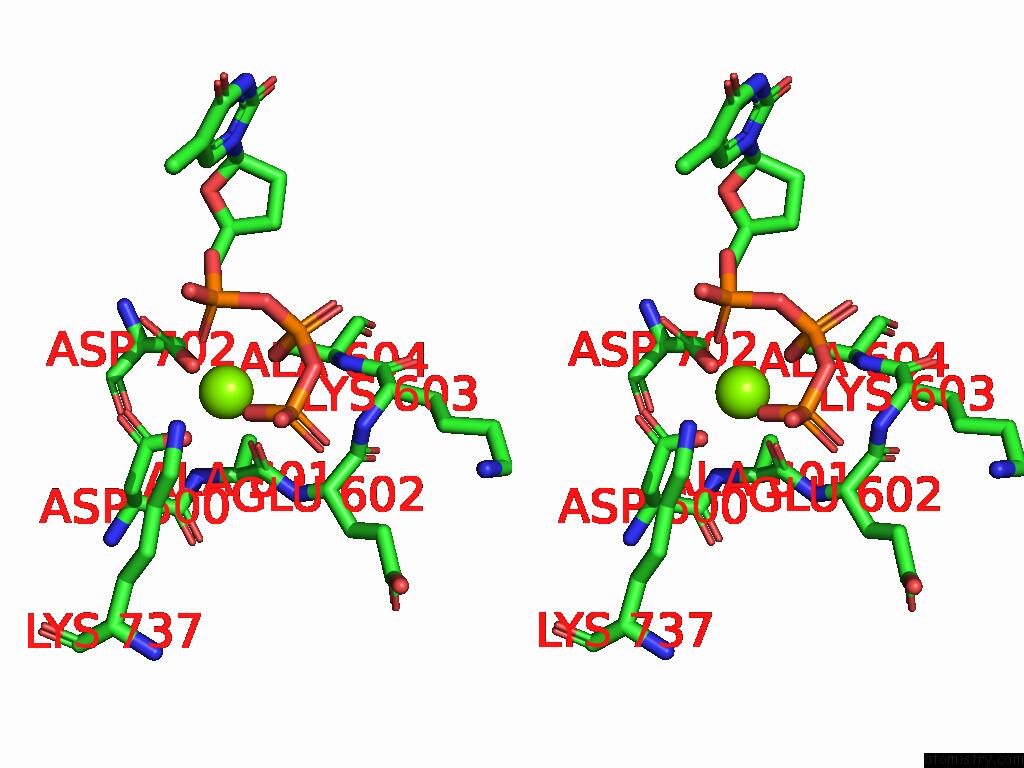

Stereo pair view

A full contact list of Magnesium with other atoms in the Mg binding site number 1 of The Human Line-1 ORF2P Target-Primed Reverse Transcription Complex with the Fingers Domain in A Closed Conformation within 5.0Å range: probe atom residue distance (Å) B Occ A:Mg1301 b:34.4 occ:1.00 OD2 A:ASP600 2.1 51.0 1.0 O2B A:D3T1303 2.1 36.5 1.0 O1G A:D3T1303 2.2 45.4 1.0 O A:ALA601 2.2 42.6 1.0 O2A A:D3T1303 2.2 30.2 1.0 OD2 A:ASP702 2.2 44.6 1.0 CG A:ASP600 3.1 64.2 1.0 C A:ALA601 3.4 45.2 1.0 PB A:D3T1303 3.4 29.0 1.0 OD1 A:ASP600 3.5 71.0 1.0 CG A:ASP702 3.5 44.5 1.0 PG A:D3T1303 3.6 38.2 1.0 PA A:D3T1303 3.6 33.0 1.0 O3A A:D3T1303 3.9 35.0 1.0 O3B A:D3T1303 3.9 29.7 1.0 N A:ALA601 4.1 43.8 1.0 OD1 A:ASP702 4.2 48.1 1.0 CA A:ALA601 4.2 42.9 1.0 C5' A:D3T1303 4.2 31.5 1.0 O3G A:D3T1303 4.2 45.2 1.0 CB A:ASP600 4.4 58.6 1.0 N A:GLU602 4.4 47.9 1.0 CB A:ALA604 4.5 42.5 1.0 CB A:ALA601 4.5 44.0 1.0 O5' A:D3T1303 4.5 30.2 1.0 NZ A:LYS737 4.5 75.3 1.0 CB A:ASP702 4.6 37.2 1.0 N A:LYS603 4.6 49.0 1.0 N A:ALA604 4.6 47.9 1.0 O1B A:D3T1303 4.6 33.2 1.0 O1A A:D3T1303 4.6 36.5 1.0 CA A:GLU602 4.7 50.2 1.0 O2G A:D3T1303 4.7 42.6 1.0 C A:ASP600 4.7 49.4 1.0 C A:GLU602 4.9 46.8 1.0
